WHILL C2 HIGH BACK ELECTRIC WHEELCHAIR

Product Description

WHILL Model C2 High Back

About the WHILL Model C2 High Back: Customizable Power Wheelchair

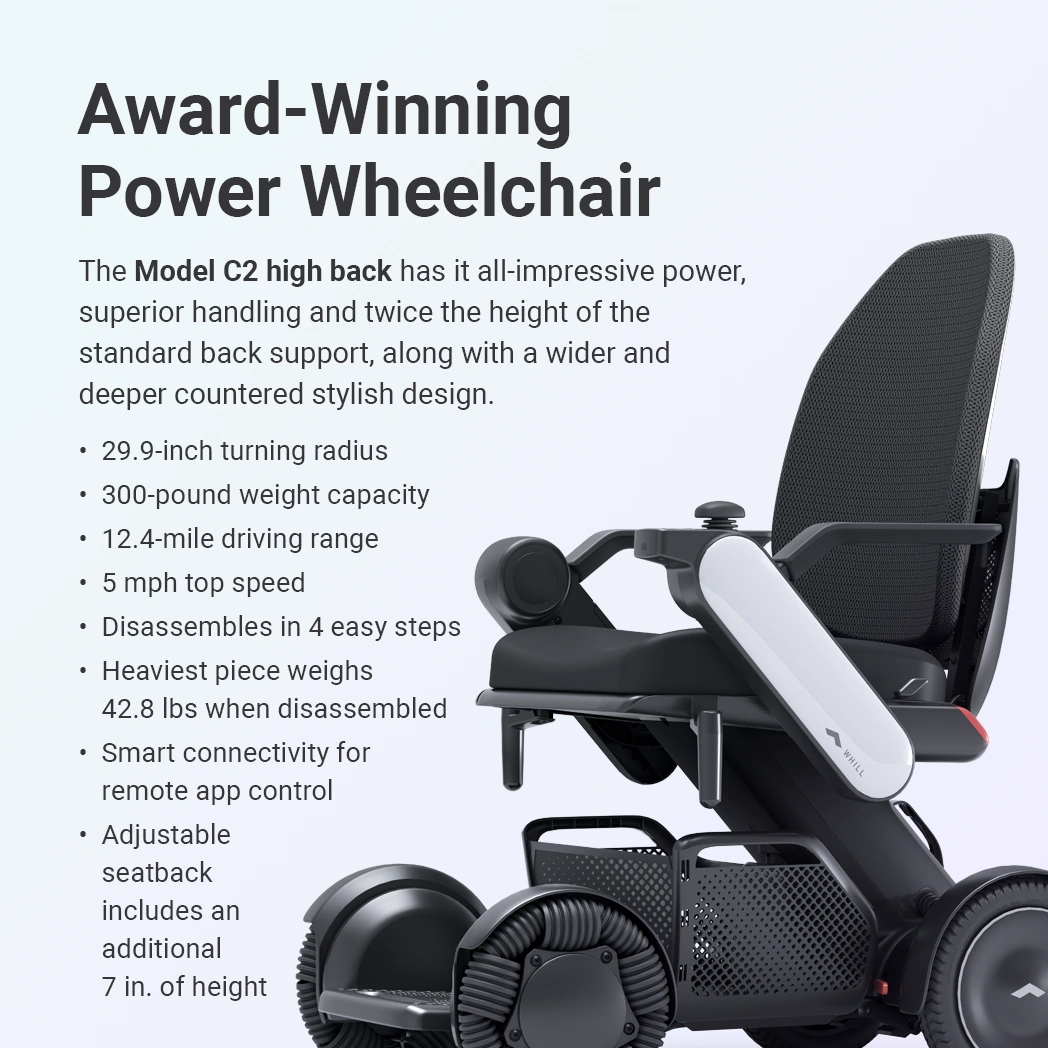

The WHILL Model C2 High Back power chair has it all — the same power, design, and superior handling of the standard Model C2, now with a taller back support that provides more comfort for the user. At 20 inches, the adjustable seatback is double the height of the regular Model C2 and can be set at an angle of either 90, 95, or 100 degrees.

When it comes to portable electric wheelchairs, this device is in a class of its own. With its unique combination of luxury, performance, and innovative technology like patented omni-directional wheels, the Model C2 gives users more freedom in their everyday lives and sets a new standard for what a mobility device can be. We designed the WHILL Model C2 High Back to provide users with the ultimate wheelchair experience, allowing you to get more out of life without sacrificing comfort or style. Its sleek and supportive design is a testament to our mission of creating high-quality electric wheelchairs that allow everyone to explore the world with confidence.

Please note: the High Back is currently only available on the 18″ and 20″ Model C2 seat widths. It is not available on the 16″ seat width.

FDA Compliance: The WHILL Model C2 has received 510(k) clearance for marketing as a Class II medical device.

Model C2 High Back Key Features

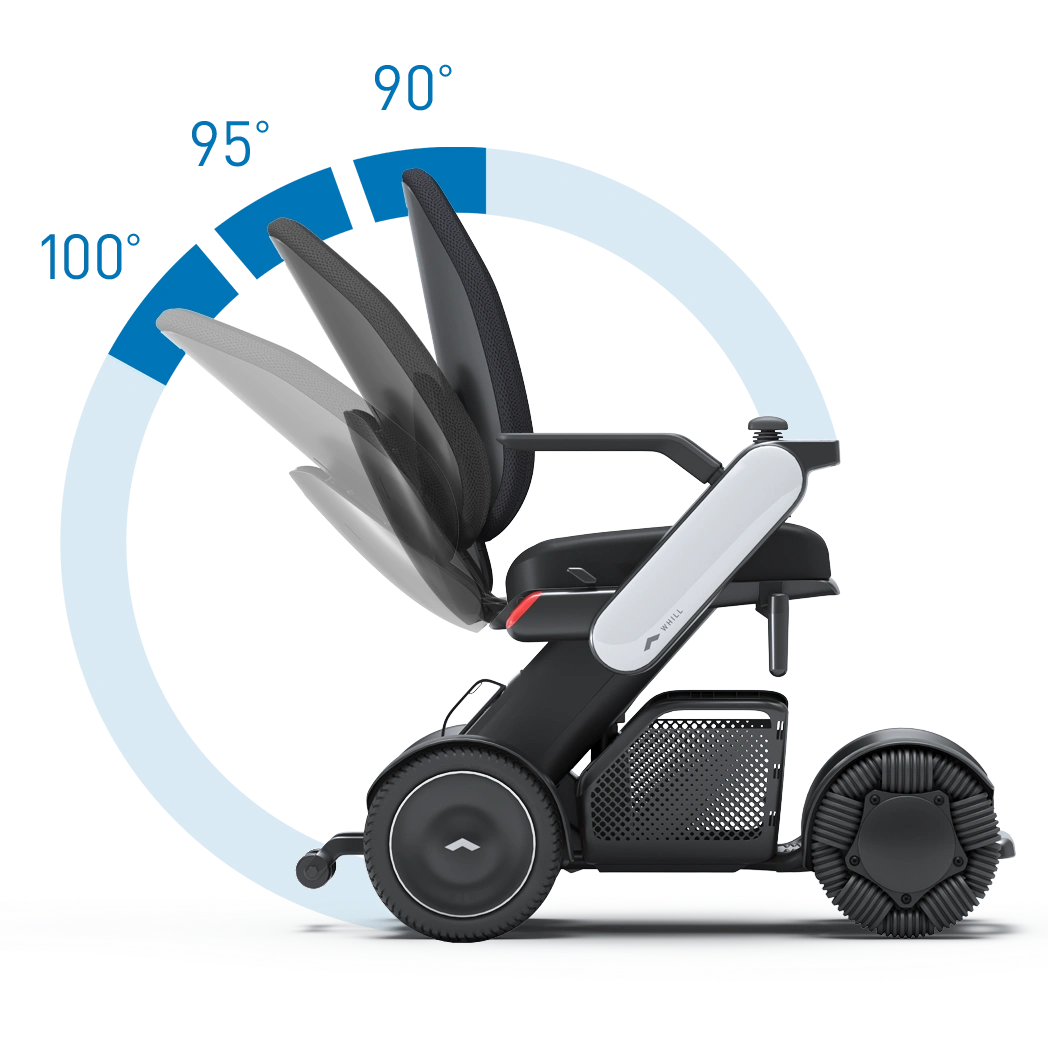

Back Support: 20″ back support is twice the height of the standard Model C2. 1″ thick cushion for added comfort. Adjustable seatback angle (90°, 95°, or 100°). Your purchase also comes with the standard Model C2 back rest.
Portability: Disassembles in 4 steps for easy transportation in the trunk of a car or taxi.
Customization: Seating available in 18″ x 18″ or 18″ x 18″ with adjustable arms up to 20″. Fully adjustable seat angle, seat height, controller side, and controller height.

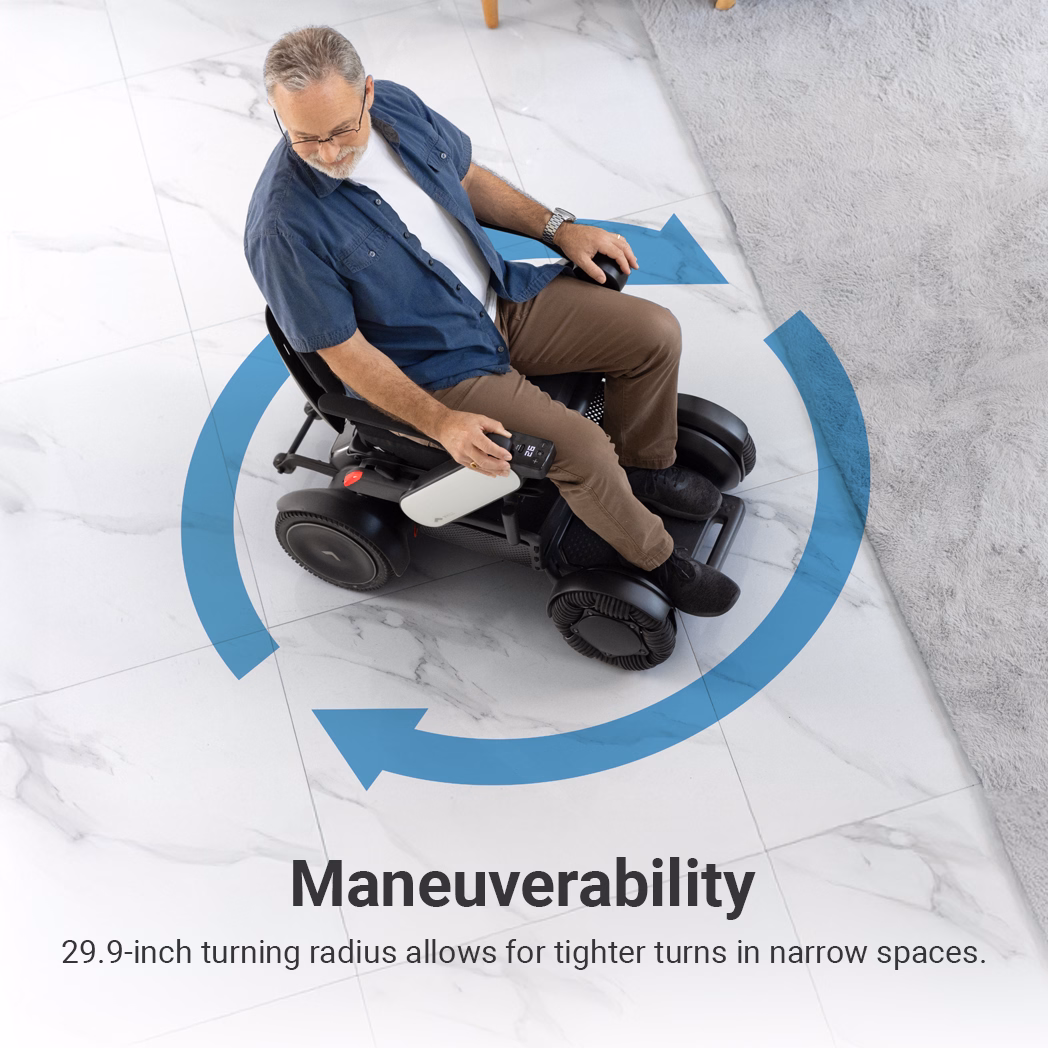

Maneuverability: 29.9″ turning radius allows for tighter turns in narrow spaces.

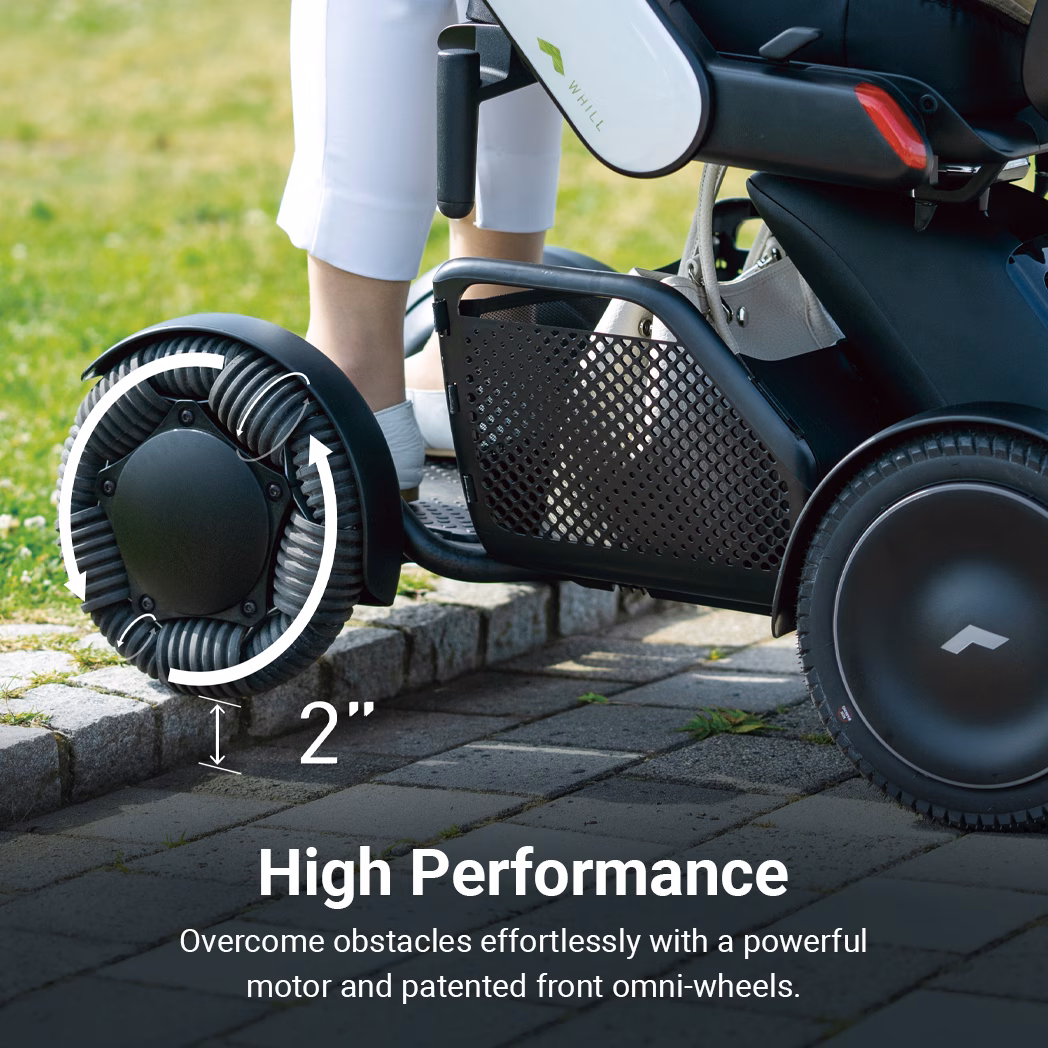

High Performance: 12.4-mile range, 300-pound weight capacity, 5 mph top speed. 4-wheel suspension provides a smooth and supportive ride. Drive up/down inclines up to 10°.
Remote Control: Use the WHILL app to remotely drive the Model C2.

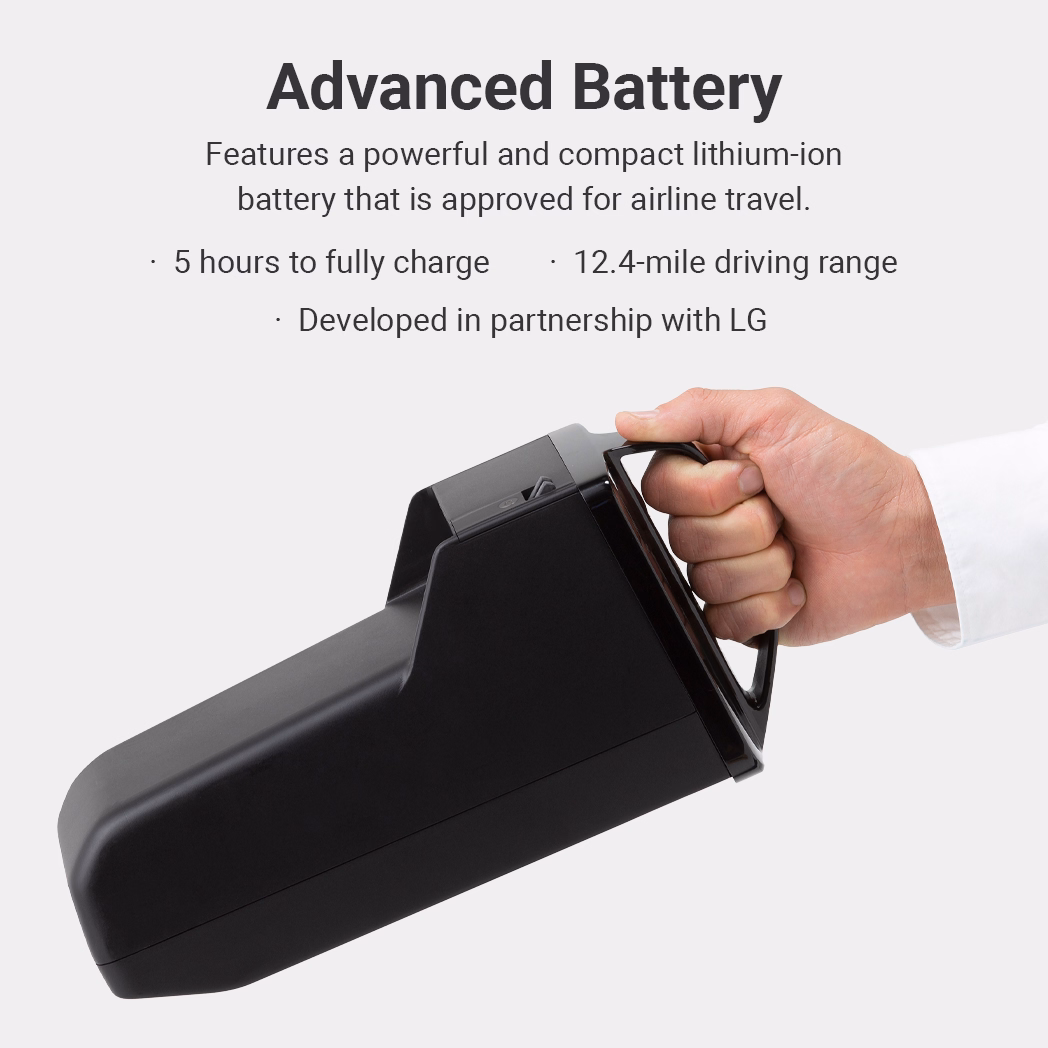

Battery: Airline-friendly lithium-ion battery.
Storage: Convenient storage basket located under seat.

Additional Information

Performance

Driving Range with Full Battery Charge Up to 12.4 miles (20 km)
Maximum Speed 5 mph (8 km/h)
3.7 mph (6 km/h)
Ground Clearance 3 inches (76 mm)
Obstacle Clearance 2 inches (50 mm)
Maximum Incline 10 degrees
Turning Radius 29.9 inches (760 mm)
Weight Capacity 300 pounds (136 kg)
Air Travel Approved Yes
Weather Tested IPX4
Suspension 4-Wheel Independent

Size and Weight

Seat Sizes W 18 x D 18 inches (W 450 x D 450 mm)
W 20 x D 18 inches (W 500 x D 450 mm)
Device Width *2 23.6 to 25.6 inches (554 to 650 mm)
Device Length 38.8 inches (985 mm)
Device Height *3 26.4 to 28.7 inches (670 to 730 mm)
Device Weight *4 116 pounds (52.6 kg)
116.4 pounds (52.8 kg)
Battery Weight 6 pounds (2.7 kg)
Seat Assembly Weight 26.9 to 28.9 pounds (12.2 to 13.1 kg)
Front Drive Base Weight 38.8 pounds (17.6 kg)
Rear Drive Base Weight 42.8 pounds (19.4 kg)

*2 Total device width based on seat width.

*3 At top of controller. Highest point of device with back support folded down.

*4 Includes battery (6 lbs (2.7 kg)). Device weight varies by seat size.

Battery and Power

Charging Time Up to 5 hours
Battery Type Lithium-ion

Adjustments

Seat Height *6 15.9 to 19.1 inches (405 to 485 mm)
Controller Position *7 Right, Left
Controller Height *8 26.4 to 28.7 inches (670 to 730 mm)
Back Support Angle 90, 95, 100°
Back Support Height *9 21.8 to 26.5 inches (554 to 674 mm)

*6 Seat-to-Floor height.

*7 Seat-to-Floor height.

*8 Floor to top of joystick height.

*9 Seat to top of back support cushion height.

5 years: Base & Seat Frame

2 Years: Seat & Back Cushion

1 Year: Mechanical, Electrical, Components, Batteries & Tires
