Product Description

Jazzy^® Carbon

You know Jazzy^® for its industry-leading performance and quality. Now let’s talk about portability. the Jazzy^® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

With Carbon Fiber Technology, the Jazzy^® Carbon Power Wheelchair Becomes Your Greatest Travel Companion

You know Jazzy^® for its industry-leading performance and quality. Now let’s talk about portability.

Jazzy^® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.

Weighing in at a stunning 39 pounds without the battery, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

When Does a Folding Power Chair Also Put Comfort First?

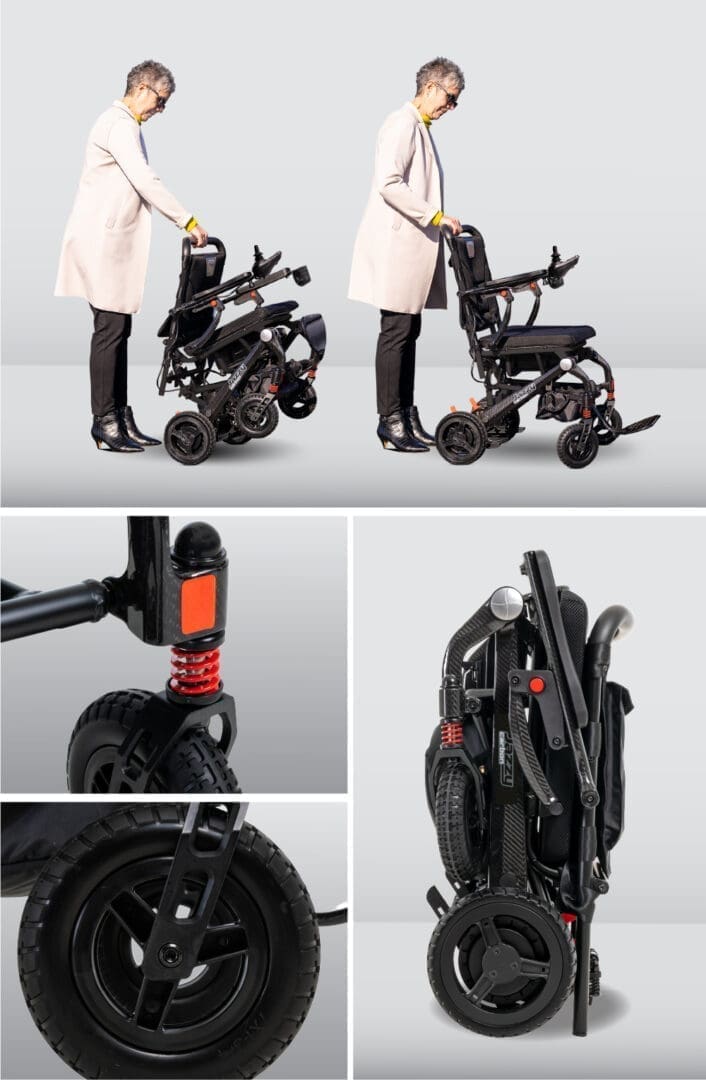

Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.

Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.

Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.

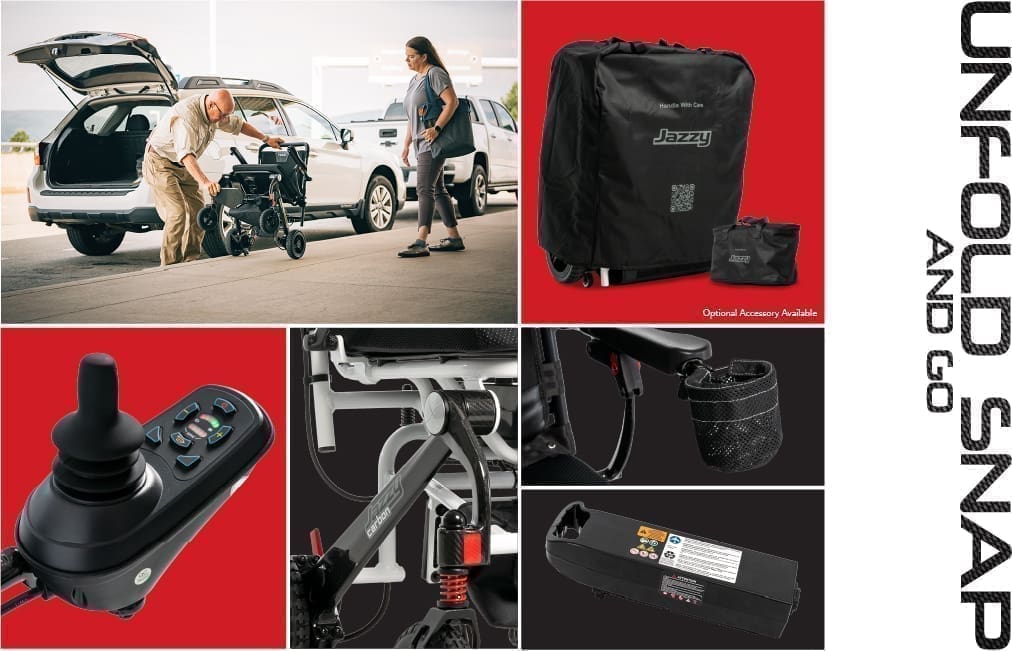

Jazzy Carbon gives you mobility and control to do it all. And now with our new Jazzy Travel Bag Kit, (optional accessory) you can protect your unit from wear and tear throughout all your adventures, while enjoying another convenient option to transport your powerchair by towing it behind you like luggage.

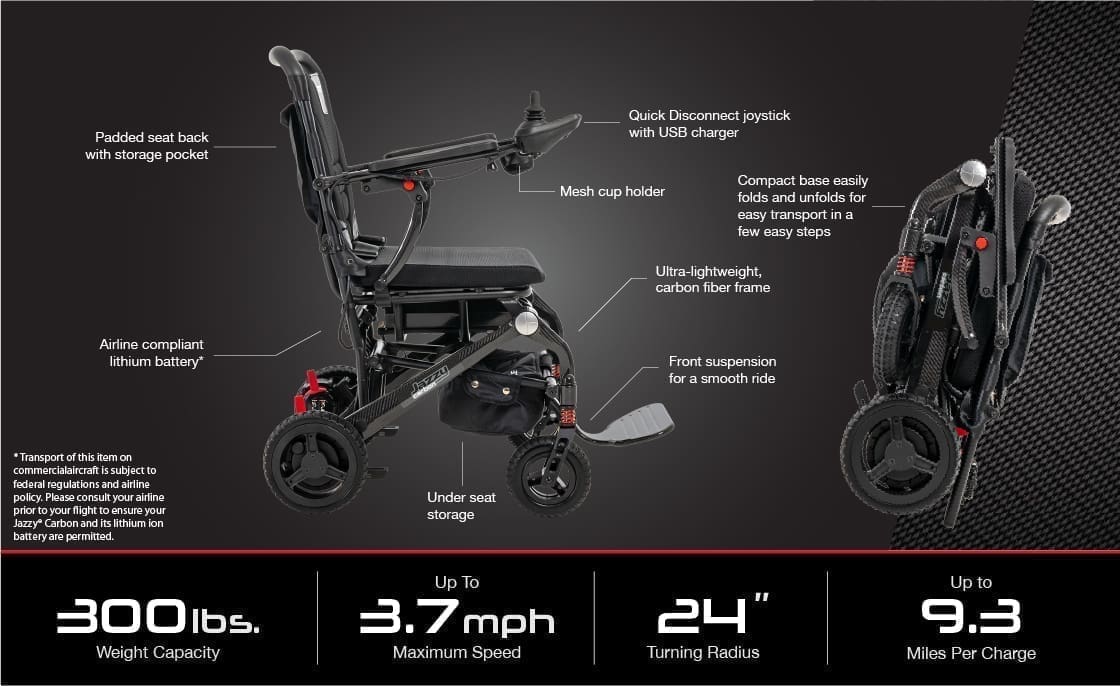

Jazzy^® Carbon Features:

• • 300 lb. weight capacity
  • Removable joystick for transporting with built in USB charger
  • Airline compliant lithium battery**
  • Front suspension for a smooth ride
  • Ultra-lightweight, carbon fiber frame specifically designed for traveling
  • Compact base easily folds and unfolds for easy transport in a few easy steps
  • Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
  • Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
  • Included under-seat storage and adjustable lap belt
  • When folded 28.3″x12.2″x24″

*Pride^® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy^® Carbon and its lithium ion battery are permitted.

CATEGORY SPECIFICATION
Model
Jazzy® Carbon
Weight Capacity 300 lbs.
Turning Radius1 24″
Maximum Speed1 Up to 3.7 mph
Ground Clearance3 2″
Overall Length3 37″
Overall Width3 24″
Seat-to-Ground Height 19″
Seat-to-Foot Platform Height 14.5″ (no adjustment)
Front Wheels 7″
Rear Wheels 8.5″
Seat-to-Floor Range with Standard Cushion 20.75″
Seat-to-Floor Range without Cushion 18.75″
Power Elevating Seat NA
Seat Weight(s) NA
Battery Sizes 24V 12AH (288WH)
Suspension Front
Total Weight Without Batteries3,5 39 lbs.
Total Weight With Batteries3,5 43.6 lbs.
Heaviest Piece When Disassembled3 N/A
Standard Seating Material: Black, Foam
Dimensions: 17″ x 17″
Maximum Seat Size 17″ x 17″
Per Charge Range Up to 9.3 miles
Drivetrain 24v/250W Brushless motors
Standard Electronics 35A Brushless Micon
HCPCS Codes Non-coded: K0899
Braking System Regenerative and electromechanical
Battery Weight4 4 lbs.
Battery Charger Off-board, 2-amp lithium-ion
Weight of Heaviest Piece NA unit folds and doesn’t disassemble

Frame: Lifetime limited;
Drivetrain: 1-year limited;
Electronics: 1year limited;
Batteries: 1-year limited
