Product Description

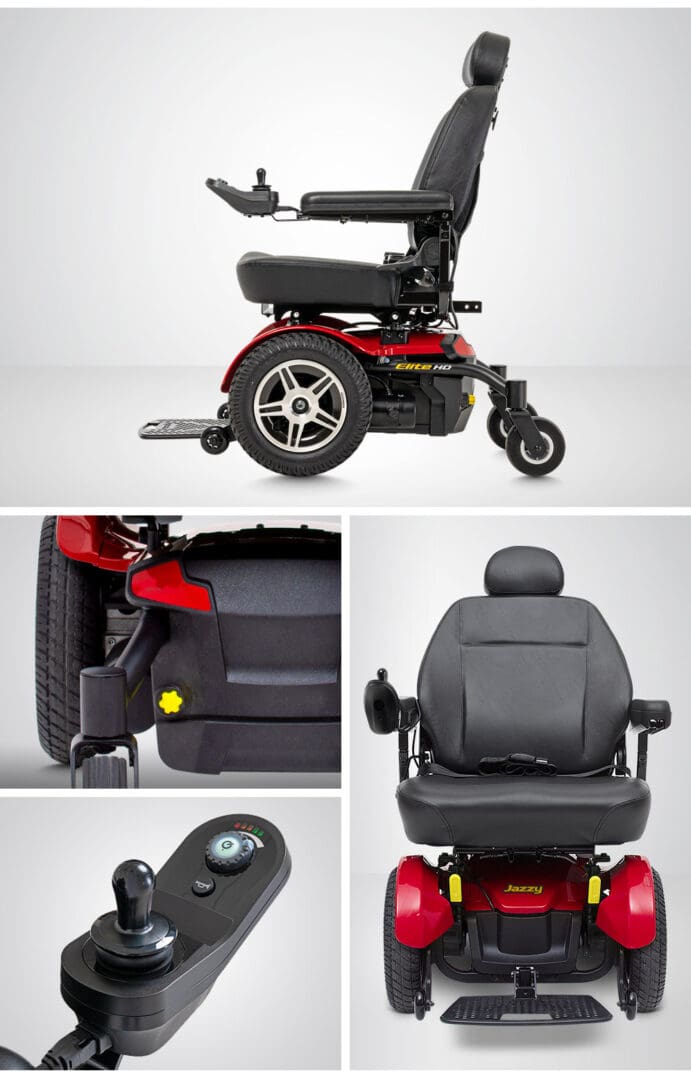

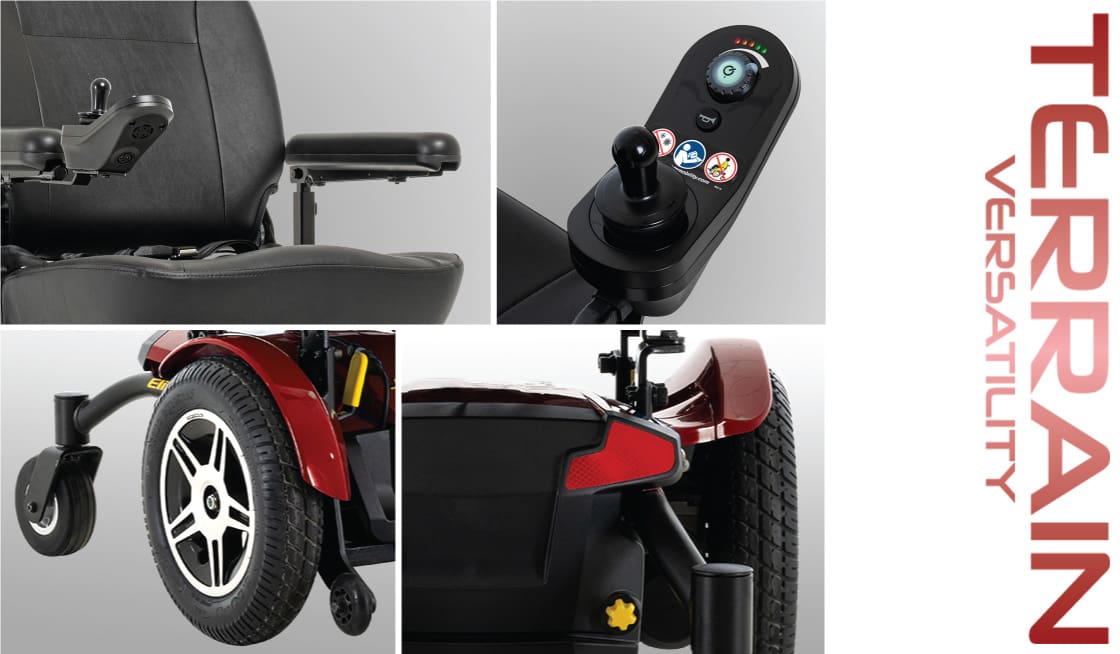

Jazzy^® Elite HD

Experience the power and versatility of the Jazzy^® Elite HD. Large front wheels absorb and climb, easily tackling life’s everyday obstacles. An intuitive hand control ensures effortless operation and simple maneuvering.

It’s the Ultimate Heavy Duty Electric Wheelchair

The Jazzy^® Elite HD Heavy Duty Power Wheelchair excels on various terrain. When your lifestyle calls for superior performance, the Jazzy Elite HD answers. You’ll be in complete control using dual-motor, front-wheel drive technology. The knobby, 14-inch drive wheels are begging for a challenge. These bigger-than-average tires provide extra absorption on uneven terrain. Accompanied by 3-inch anti-tip wheels on the front and 6-inch solid casters on the back, the big drive wheels make life easy to maneuver.

Jazzy Elite HD Wheelchair is Robust and Ready

The Jazzy Elite HD has a 450-pound weight capacity. It was designed with optimum weight distribution, ensuring top-of-the-line traction. With up to 14.4 miles per charge you can navigate your surroundings, reaching a top speed of 4 mph. The Jazzy Elite HD has plenty of finesse to navigate tight corners.

Easy-to-Operate Heavy Duty Power Wheelchair

Power and grit are the Jazzy Elite HD’s greatest strengths but hardly the only ones. You’ll be pleasantly surprised by how easy it is to operate and how comfortable it is. The intuitive, in-line hand control allows for effortless maneuvering. You can pivot on the 24-inch turning radius with a simple move of the joystick.

The broad footrest is adjustable, further adding to your comfort and stability.

Jazzy^® Elite HD Features:

• 450 lbs. weight capacity
• Up to 4 mph maximum speed
• 24″ turning radius
• Up to 14.4 miles per charge
• Comfortable, depth-adjustable, limited recline high-back seat with headrest
• Easy rear access to batteries
• Intuitive controller is easy to operate
• Color-through shroud
• Angle-adjustable foot platform offers greater comfort
• Front-wheel drive design for excellent maneuverability
• 14″ knobby tires and optimum weight distribution provide superior traction
• 40A Dynamic LiNX controller
• Extended 13-month limited warranty
• HCPCS Code: Group 2 Heavy Duty (K0824/K0825)

Additional Information

CATEGORY SPECIFICATION
Model Jazzy® Elite HD
Weight Capacity 450 lbs.
Turning Radius1 24″
Width1 24.25″
Length 35.5″
Maximum Speed Up to 4.0 mph
Ground Clearance1 3″
Front Wheels 3″ solid anti-tips
Drive Wheels 14″ foam filled
Rear Wheels 6″ solid casters
Drivetrain Two motor, front-wheel drive
Braking System Regenerative and electro-mechanical)
Suspension Type Limited
High-Back Seat (max. size) 24″W x 24″D
High-Back Seat-to-Floor Range 20” – 22”
Synergy® Seating 24”W – 24”D
Synergy® Seat-to-Floor Range 15.75” – 17.75”
Standard Electronics 50 A Dynamic
Battery Size (2 required) 12 volt, NF-22
Standard Battery Charger 5A, off-board
Per-Charge Range3,7 Up to 14.4 miles
Battery Weight6 37 lbs. each
Weight of Heaviest Piece4 99 lbs.
Standard Seat Weight 18″ wide – 51.8 lbs.
20″ wide – 54 lbs.
22″ wide – 57.6 lbs.
Standard Seat Size 20″ x 18″-20″
Medicare Code Coverage Group 2 Heavy Duty (K0824/K0825)
Warranty 5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.

5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
