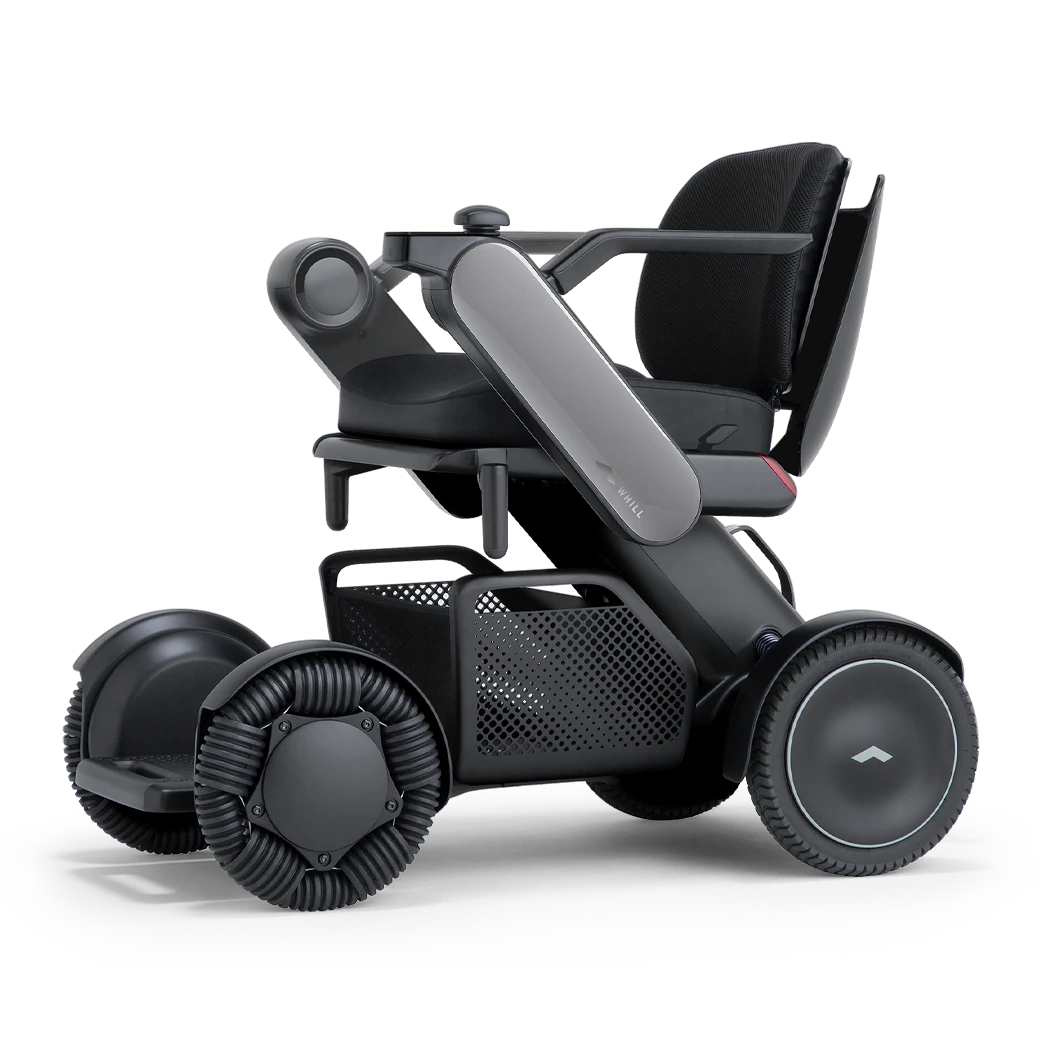

WHILL C2 POWER WHEELCHAIR

Product Description

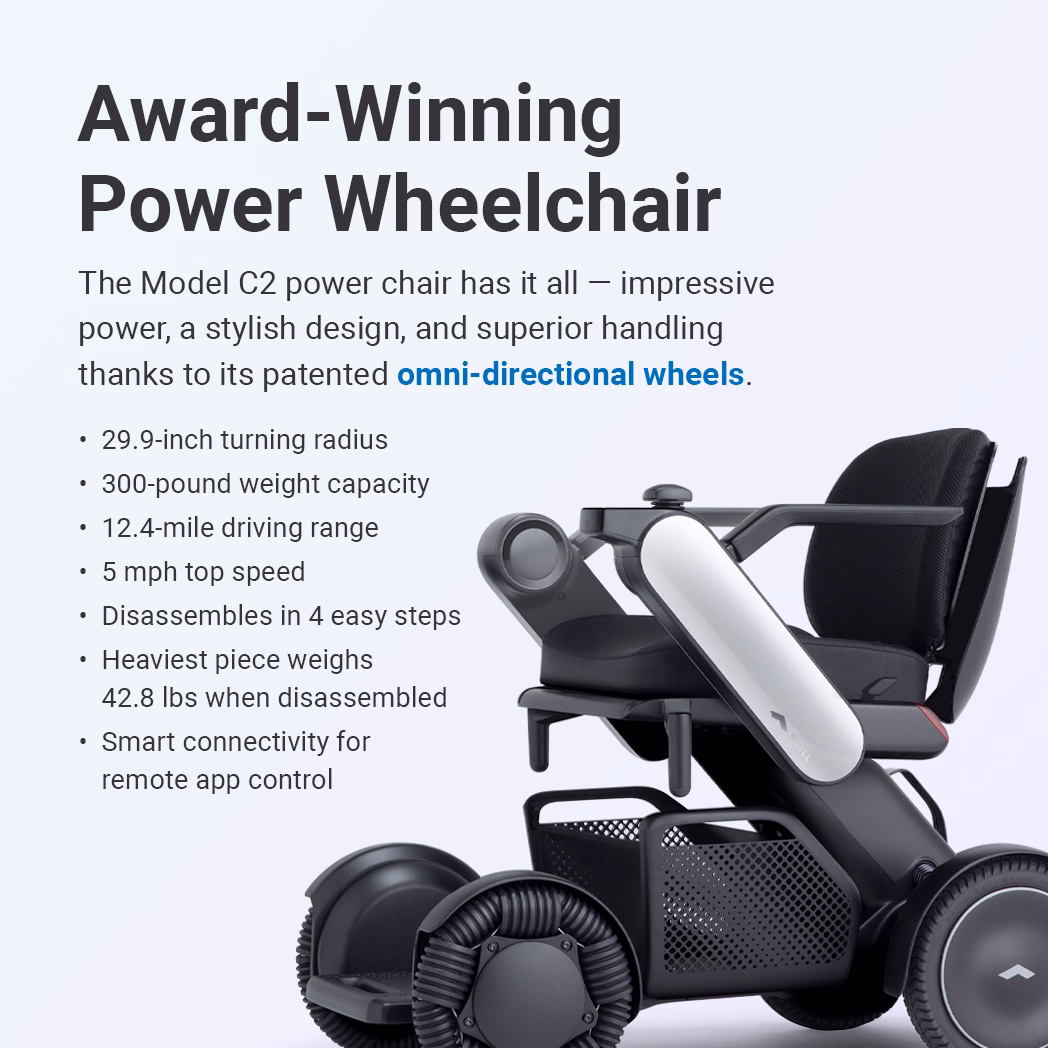

About the WHILL Model C2: Award-Winning Power Wheelchair
Often imitated. Never duplicated. The WHILL Model C2 power chair has it all — impressive power, a stylish design, and superior handling thanks to its patented omni-directional wheels. When it comes to portable electric wheelchairs, this device is in a class of its own. With its unique combination of luxury, performance, and innovative technology, the Model C2 gives users more freedom in their everyday lives and sets a new standard for what a mobility device can be.

We designed the WHILL Model C2 to provide users with the ultimate wheelchair experience, allowing you to get more out of life without sacrificing comfort or style. Its award-winning design is a testament to our mission of creating high-quality electric wheelchairs that allow everyone to explore the world with confidence.

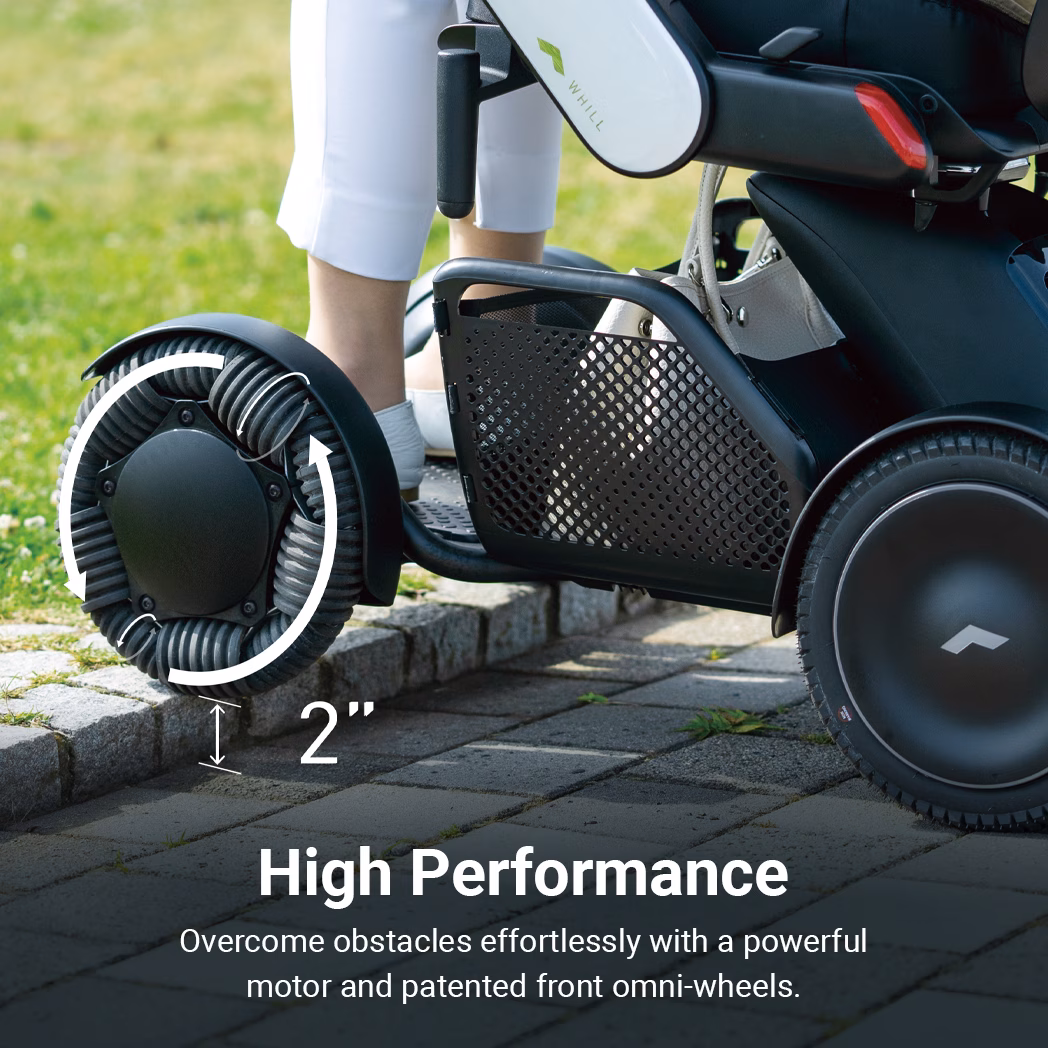

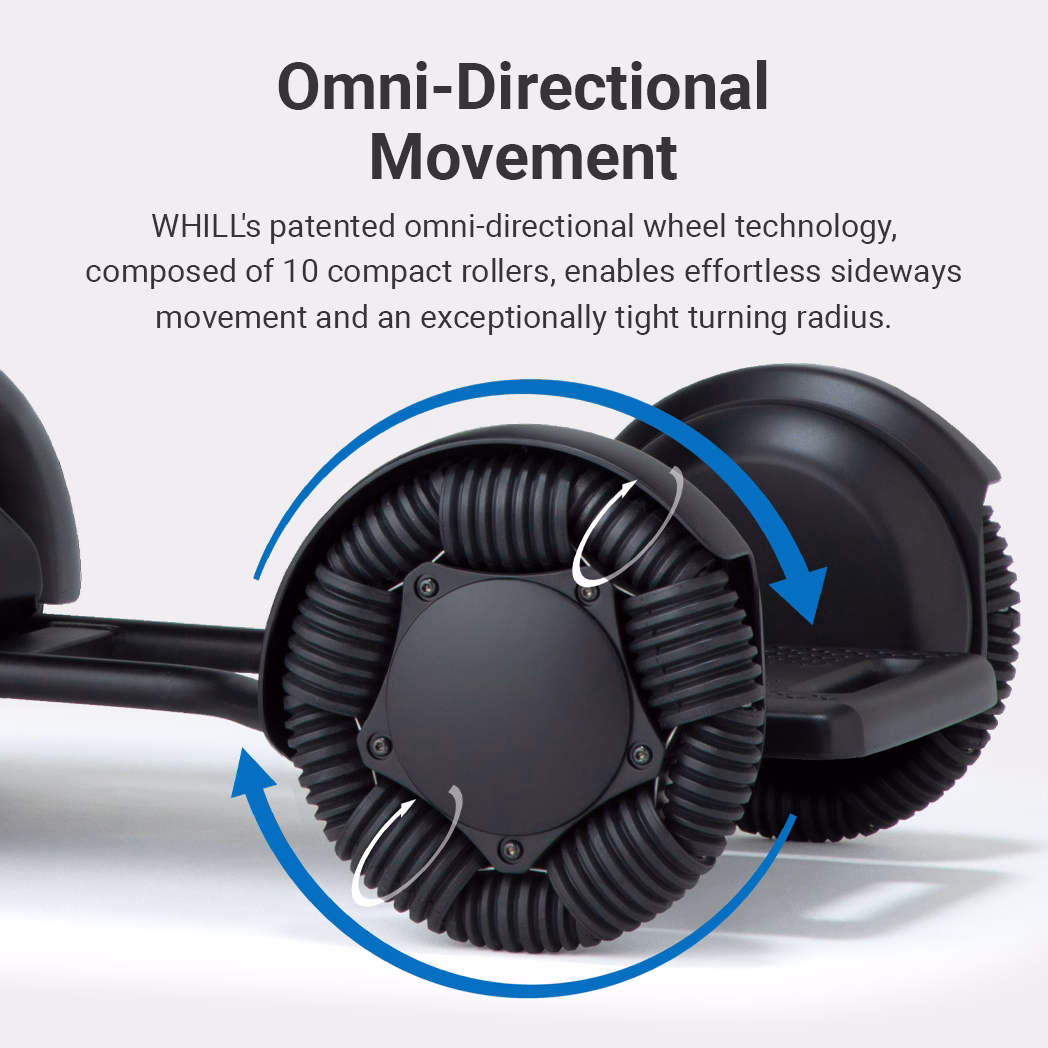

Patented Omni Wheels
Omni-directional wheel technology enables effortless sideways movement and a 29.9-inch turning radius.

Effortless Maneuverability
Navigate tight doorways and crowded spaces with a 29.9-inch turning radius, 12.4 mile range, 5 MPH speed, and stability on 10-degree inclines.

Customized Comfort
Tailored to your needs. Choose from a 16, 18 or 20-inch seat width with fully adjustable seatback angle, seat height, controller position and armrests.

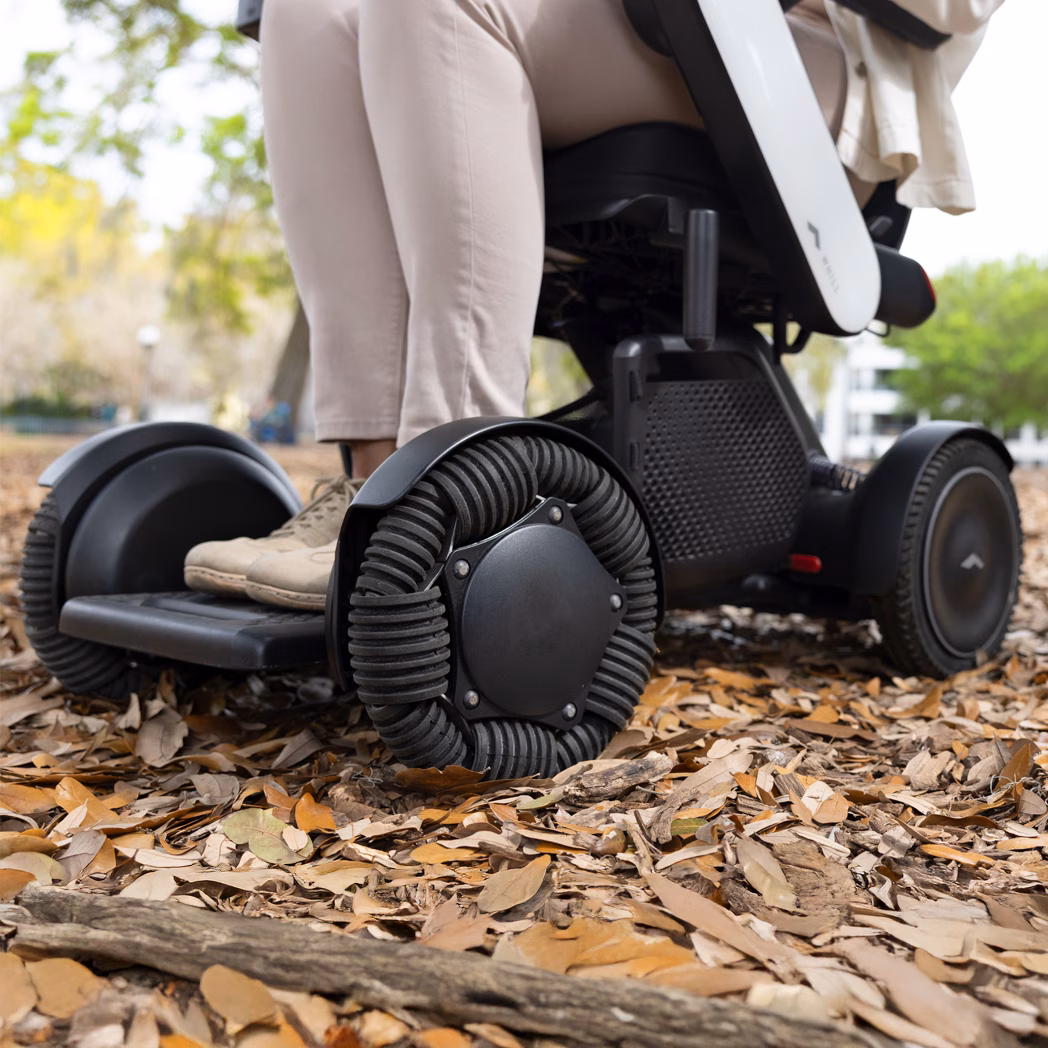

Confidence on Tough Terrain
Navigate uneven terrain with confidence. Powerful motor, omni-wheels, and four-wheel suspension ensure a safe and stable ride over any surface.

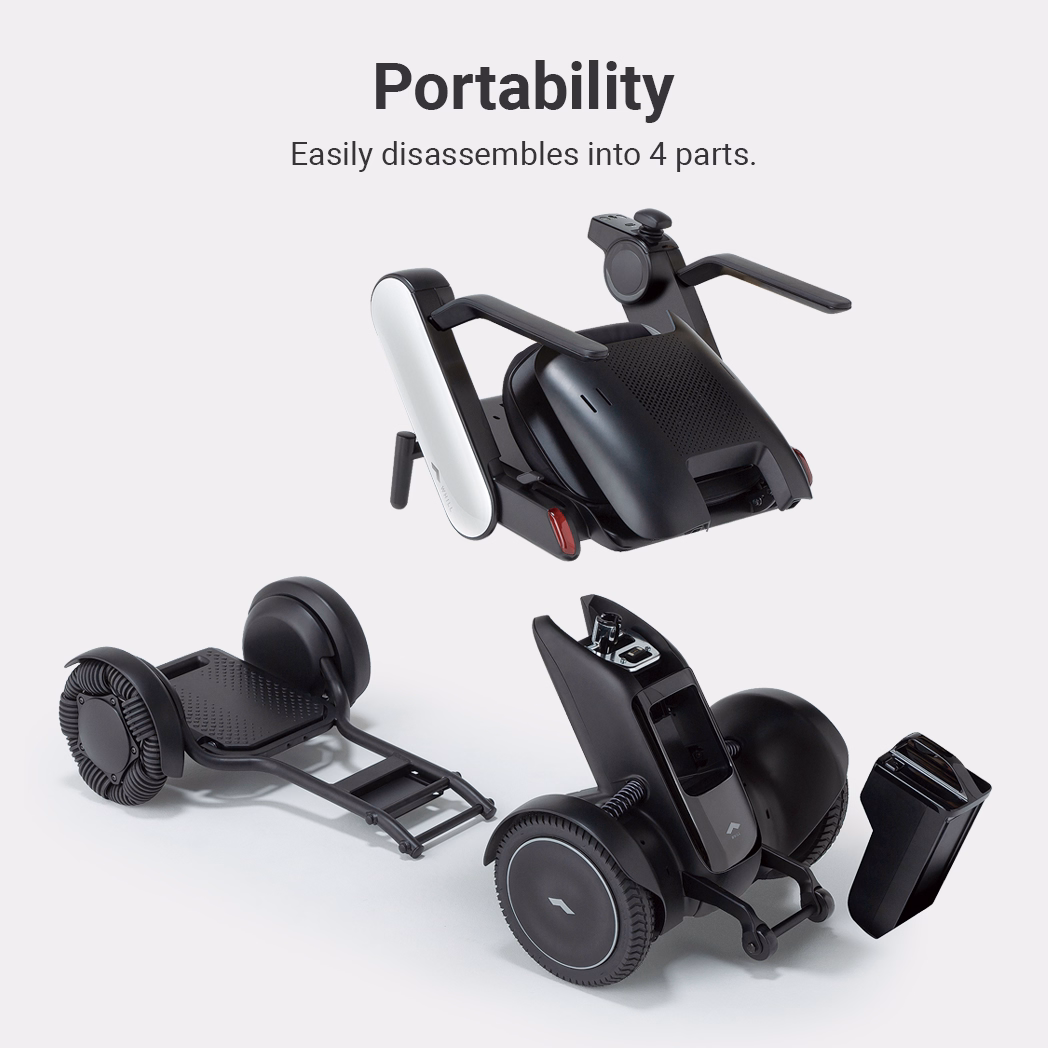

Portability
Ultra-portable and compact. Quickly disassembles in 4 easy steps for seamless transportation.

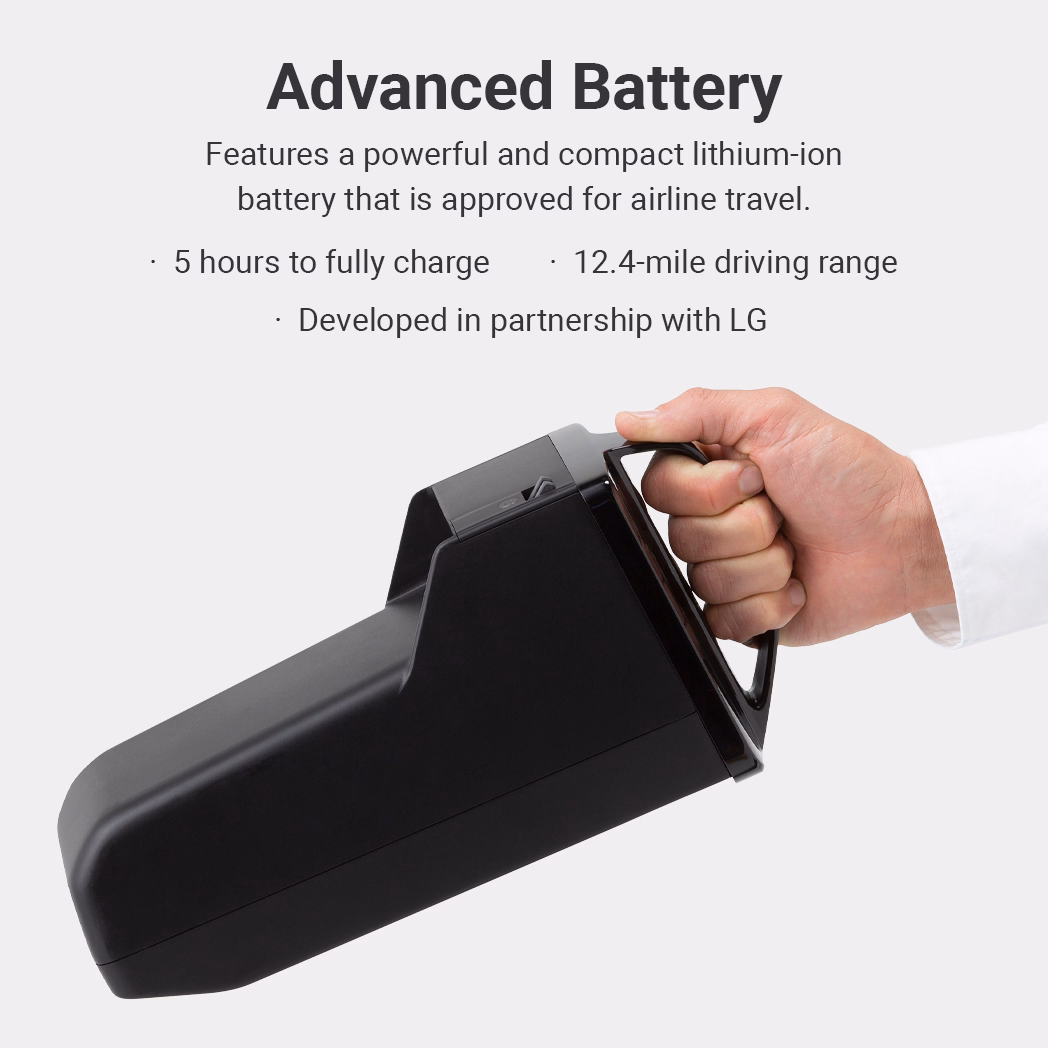

Advanced Battery
Lithium-ion battery is approved for airline travel. 12.4 mile driving range and takes only 5 hours to fully charge.

Strong Footplate
Supports up to 250lbs when transferring in and out.

Additional Information

Performance

Driving Range with Full Battery Charge Up to 12.4 miles (20 km)
Maximum Speed *1 5 mph (8 km/h)
3.7 mph (6 km/h)
Ground Clearance 3 inches (76 mm)
Obstacle Clearance 2 inches (50 mm)
Maximum Incline 10 degrees
Turning Radius 29.9 inches (760 mm)
Weight Capacity 300 pounds (136 kg)
Air Travel Approved Yes
Weather Tested IPX4
Suspension 4-Wheel Independent

*1 The maximum speed depends on local regulations.

Size and Weight

Seat Sizes W 16 x D 16 inches (W 400 x D 400 mm)
W 18 x D 18 inches (W 450 x D 450 mm)
W 20 x D 18 inches (W 500 x D 450 mm)
Device Width *2 21.8 to 25.6 inches (554 to 650 mm)
Device Length 38.8 inches (985 mm)
Device Height *3 26.4 to 28.7 inches (670 to 730 mm)
Device Weight *4 114 pounds (51.9 kg)
116 pounds (52.6 kg)
116.4 pounds (52.8 kg)
Battery Weight 6 pounds (2.7 kg)
Seat Assembly Weight 26.9 to 28.9 pounds (12.2 to 13.1 kg)
Front Drive Base Weight 38.8 pounds (17.6 kg)
Rear Drive Base Weight 42.8 pounds (19.4 kg)

*2 Total device width based on seat width.

*3 At top of controller. Highest point of device with back support folded down.

*4 Includes battery (6 lbs (2.7 kg)). Device weight varies by seat size.

Battery and Power

Charging Time Up to 5 hours
Battery Type Lithium-ion

Adjustments

Seat Height *6 15.9 to 19.1 inches (405 to 485 mm)
Controller Position *7 Right, Left
Controller Height *8 26.4 to 28.7 inches (670 to 730 mm)
Back Support Angle 90, 95, 100°
Back Support Height *9 13.4 to 18.1 inches (340 to 460 mm)

5 years: Base & Seat Frame

2 Years: Seat & Back Cushion

1 Year: Mechanical, Electrical, Components, Batteries & Tires
