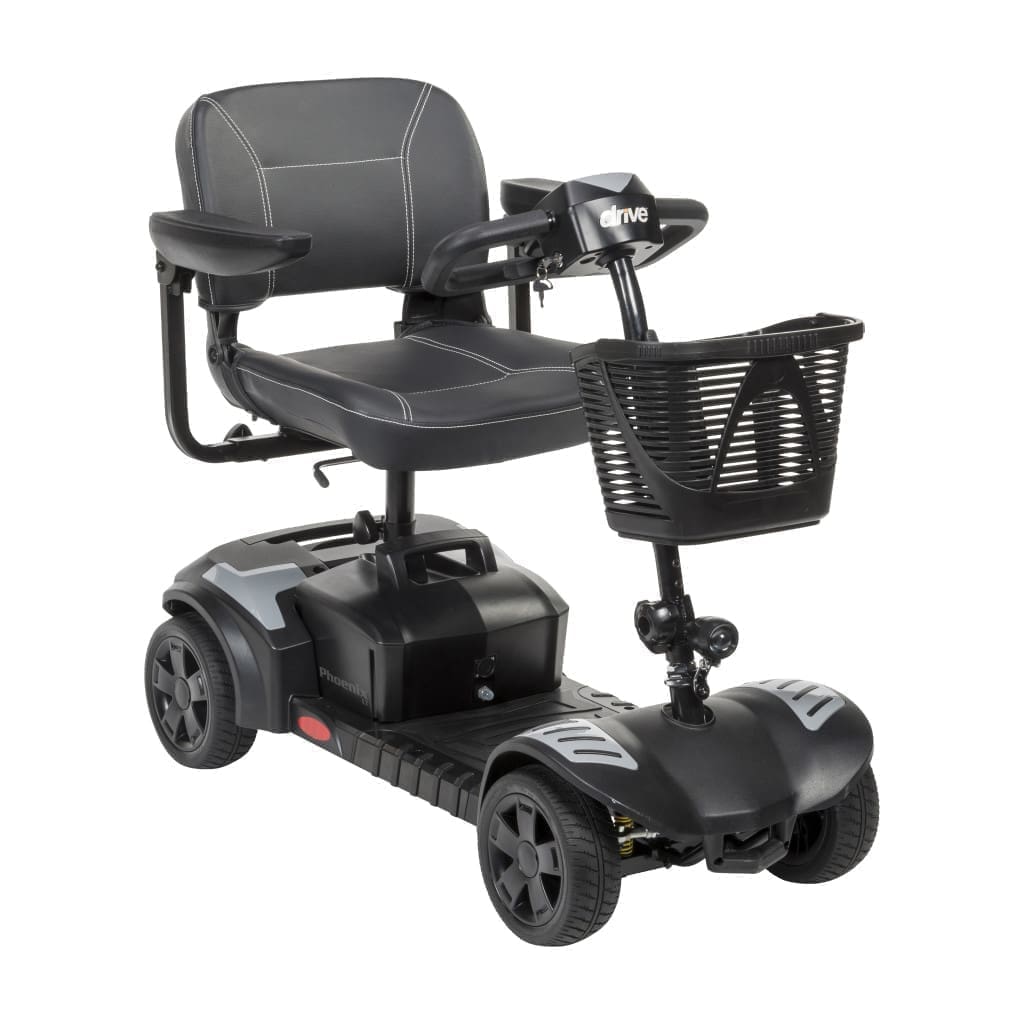

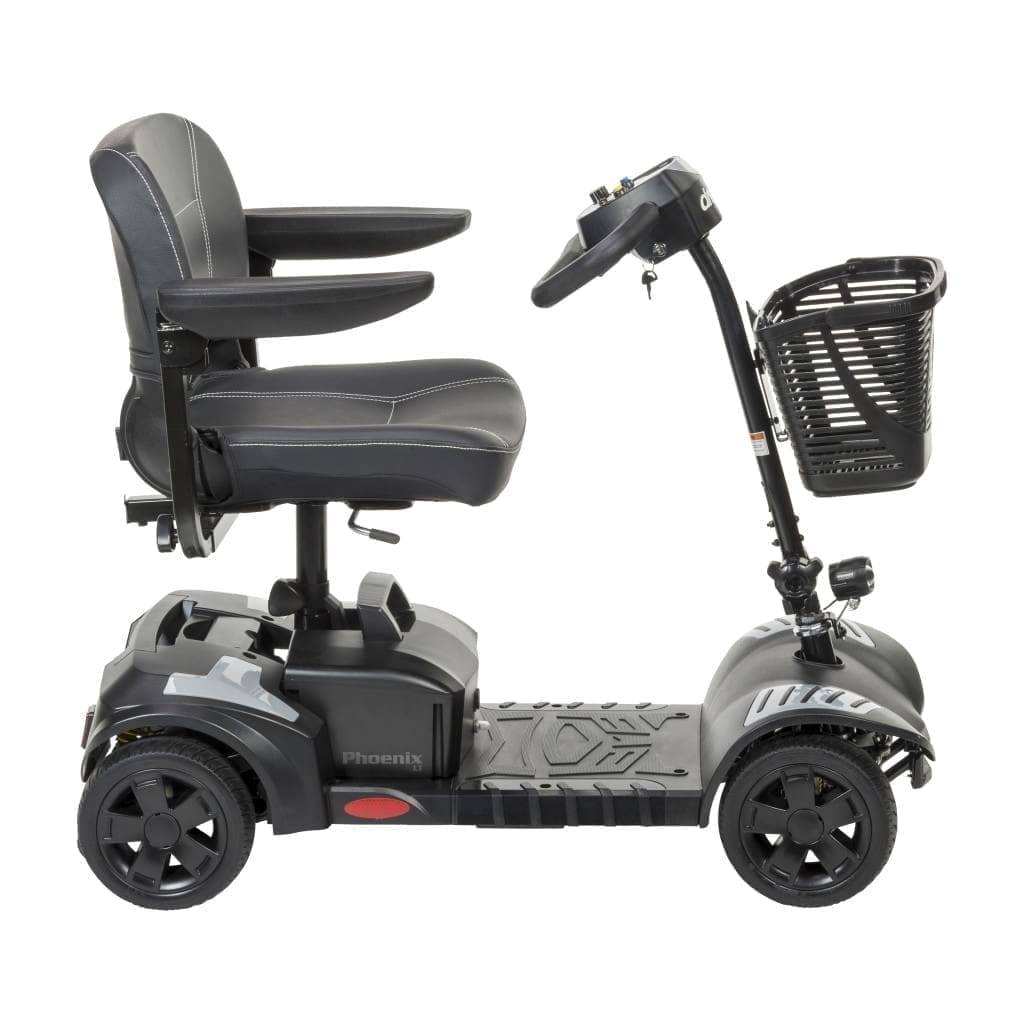

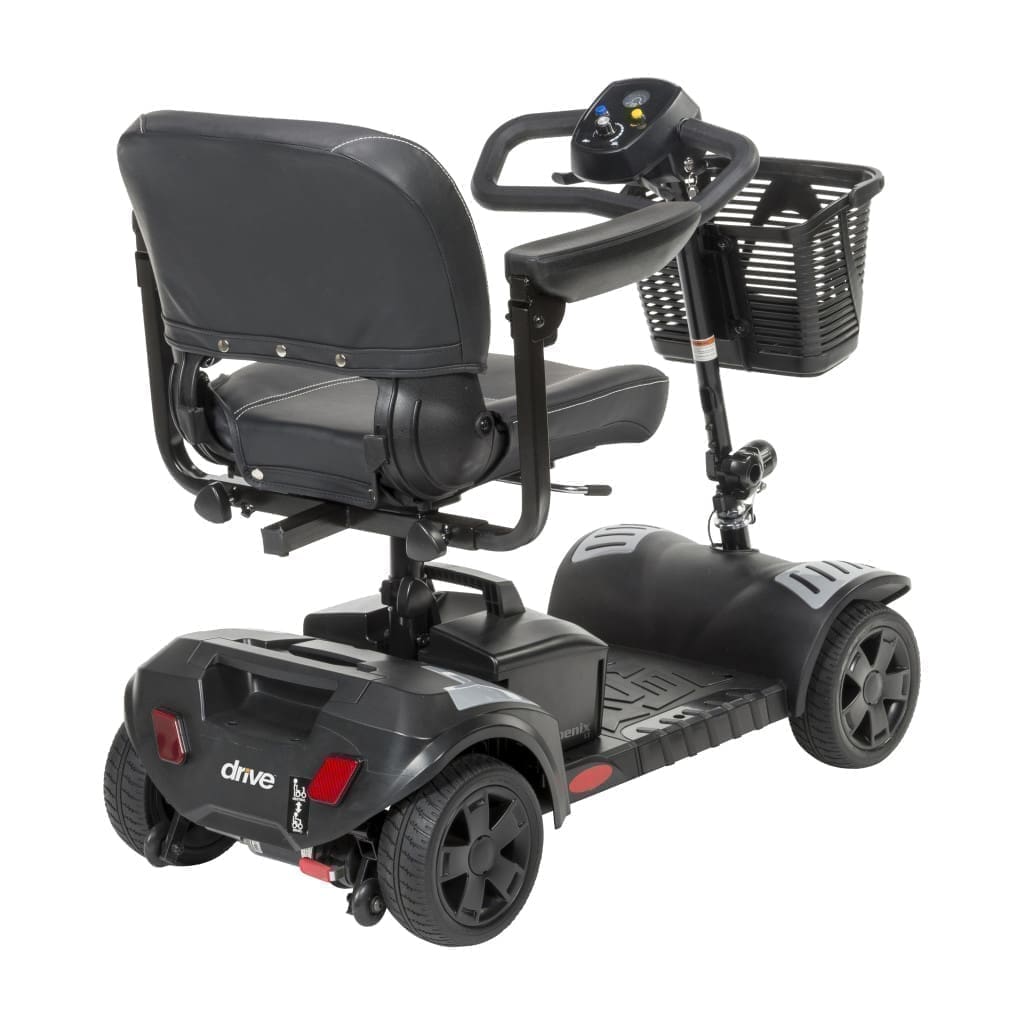

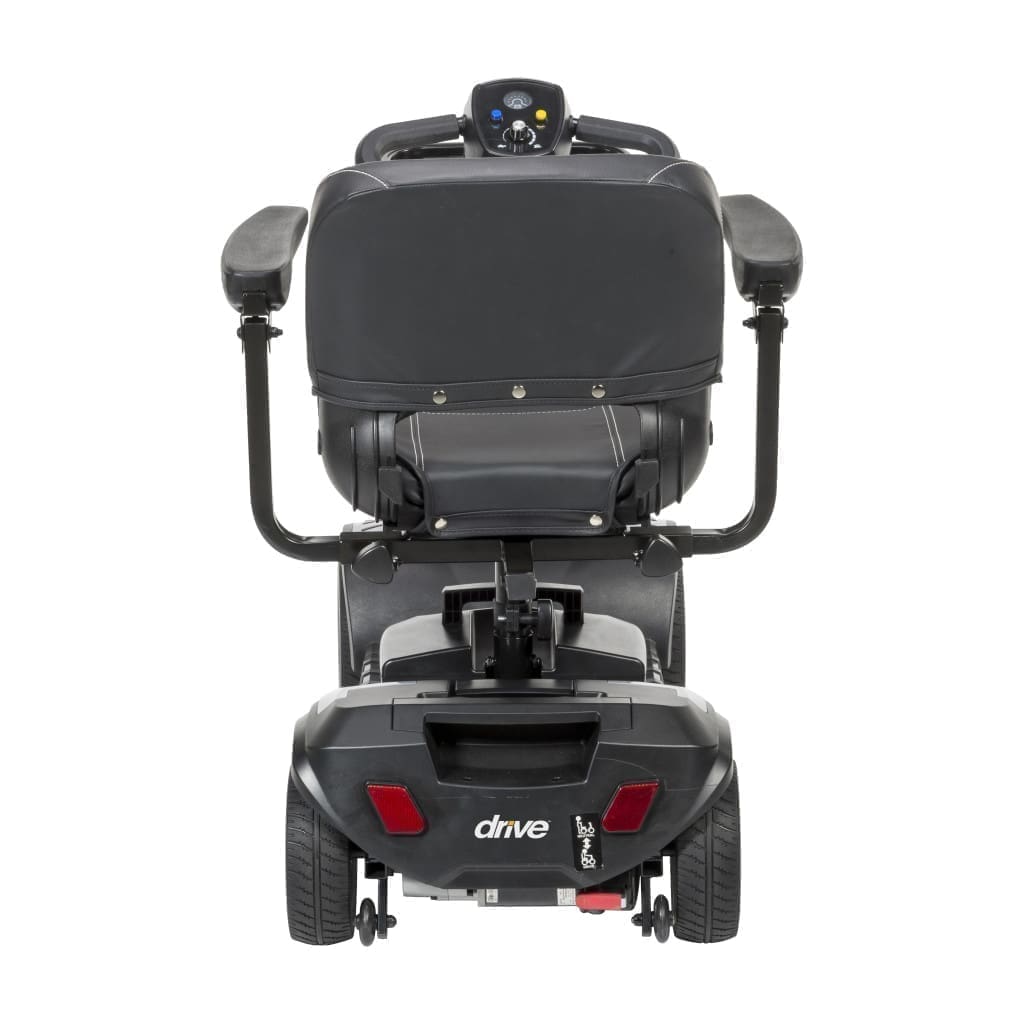

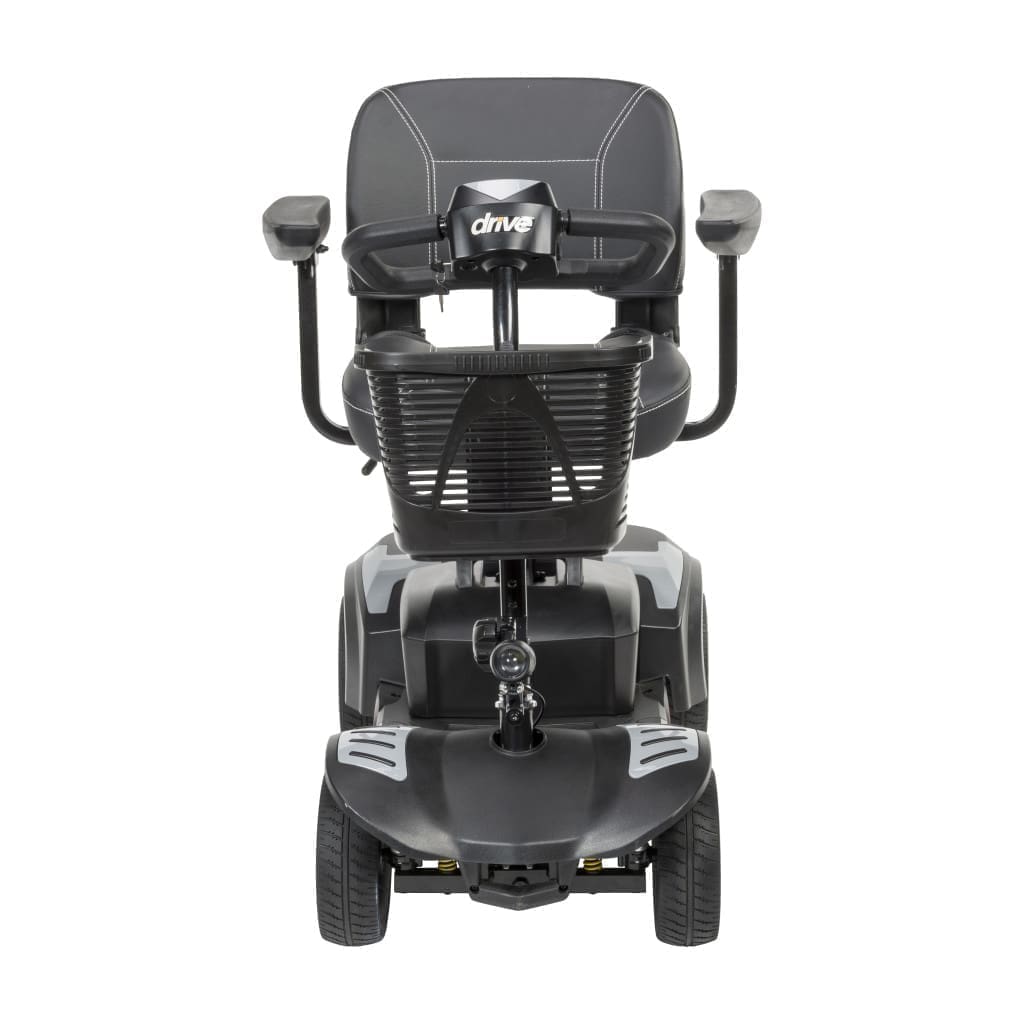

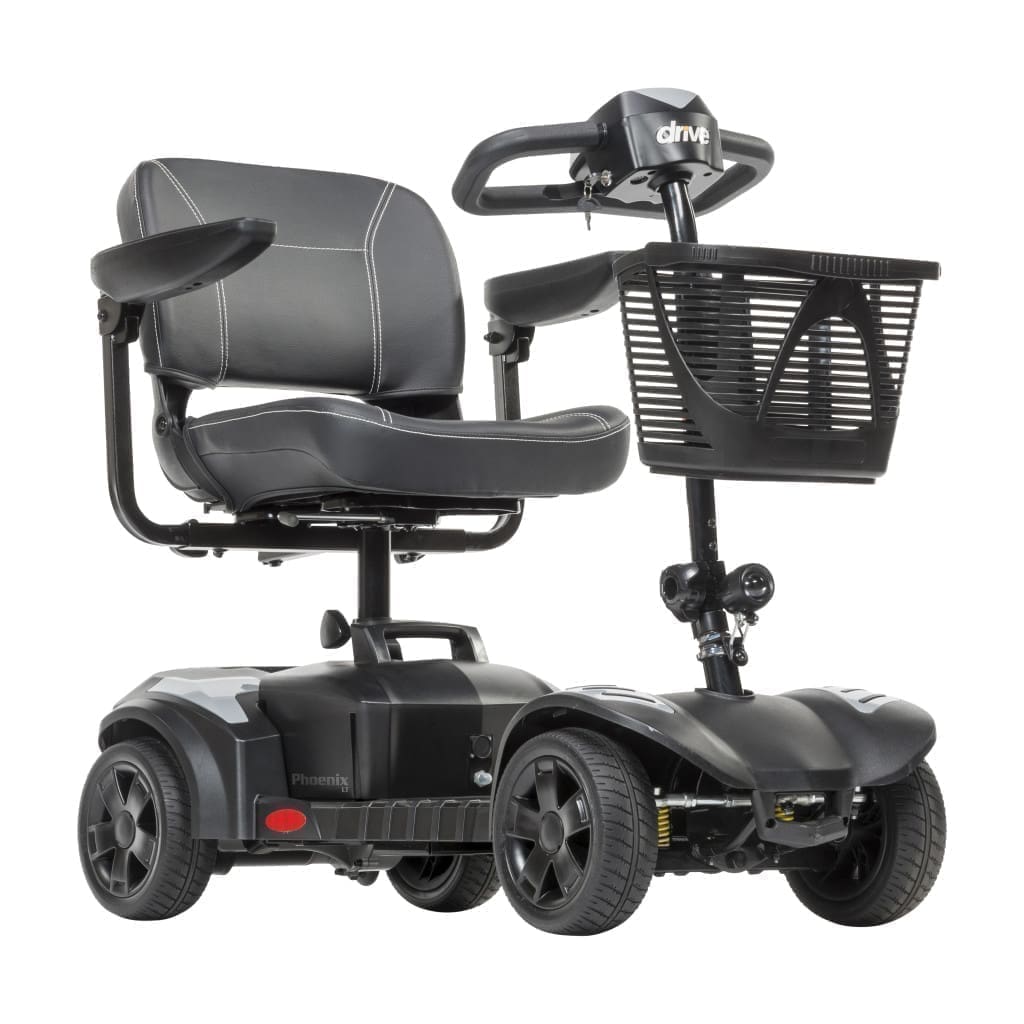

DRIVE PHOENIX LT 4-WHEEL TRAVEL SCOOTER

Product Description

The Phoenix 4-wheel travel scooter combines a 350 lbs. weight capacity with the take-apart portability of a travel scooter. The 4-wheel design and anti-tip wheels assist with overall stability for a more secure experience. This scooter also has a height-adjustable seat with flip-back and adjustable-width arms to accommodate varying body types. The seat also helps with portability by folding flat and allowing for easier transporting or storage. Your Phoenix 4-Wheel scooter can easily and quickly disassemble into five pieces.

Features

• Compact, heavy duty 4-wheel motorized scooter

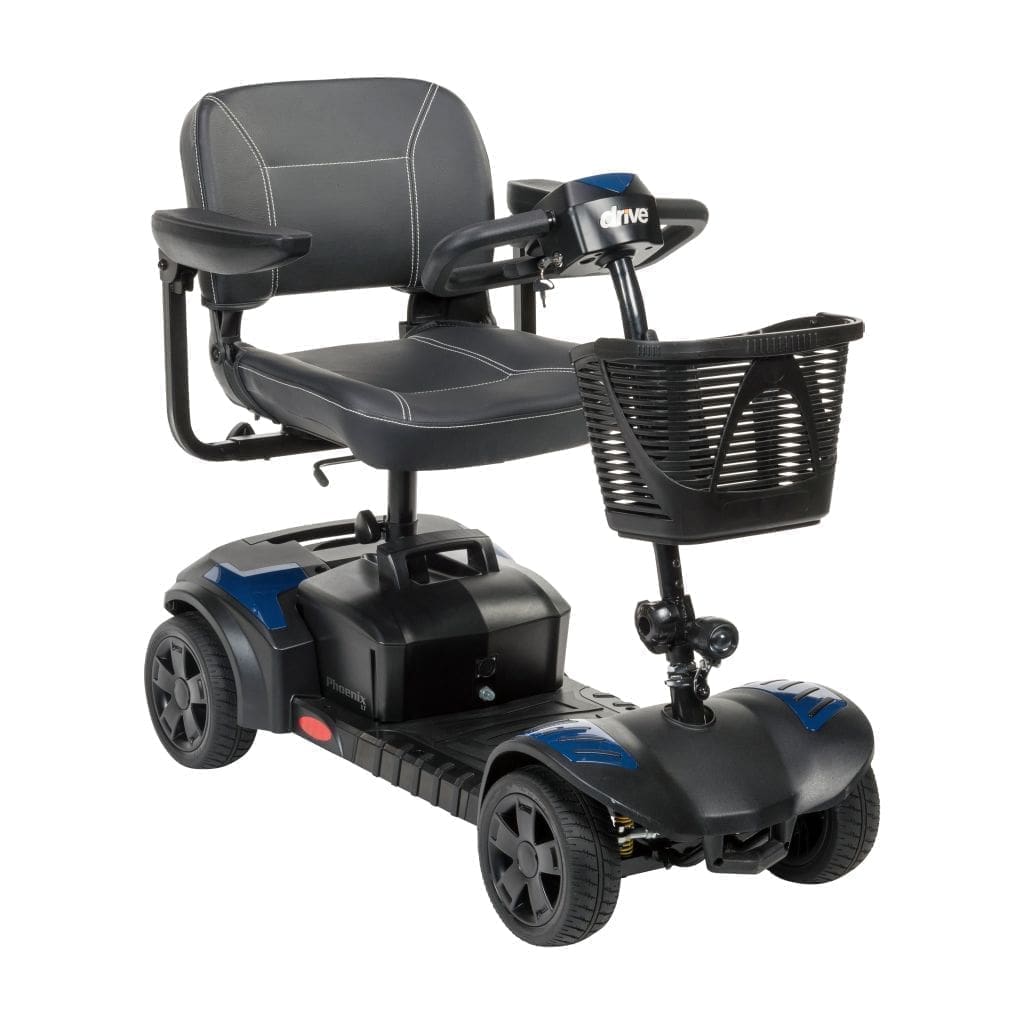

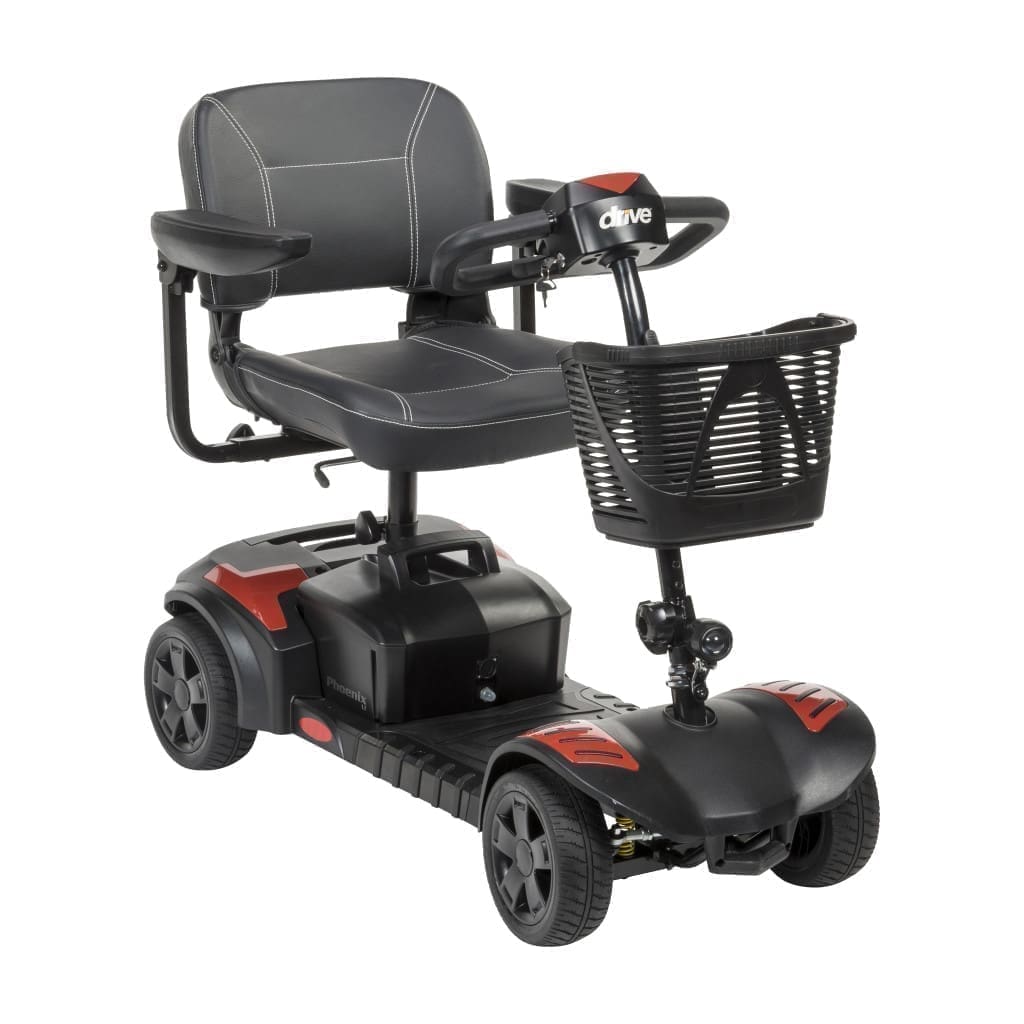

• Comes with gray, blue and red interchangeable color panel shrouds
• Generous 18″ wide cushioned seat
• Height adjustable seat swivels 180 degrees for easy transfers
• Padded, flip-back and adjustable width arms
• Seat back folds down for easier transport and storage

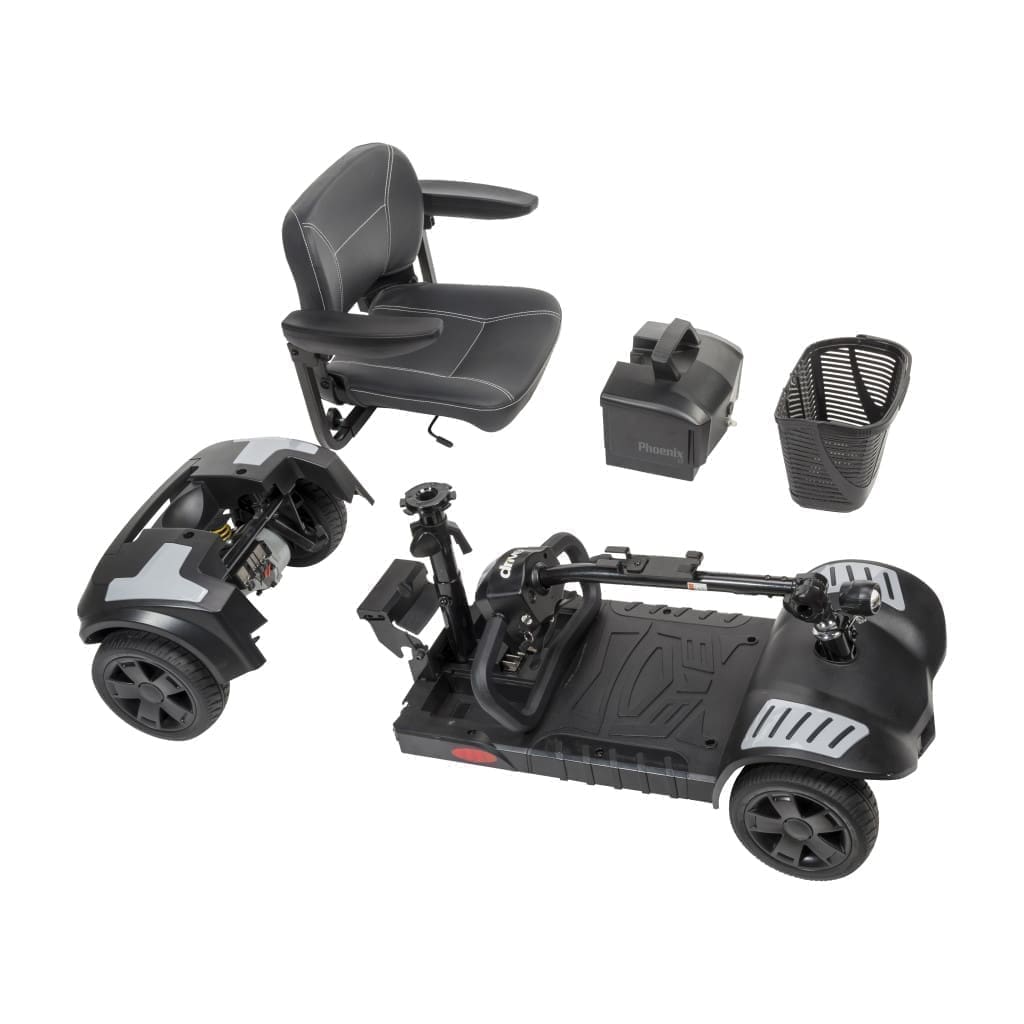

• Quick and easy disassembly into 5 pieces
• Headlight for increased visibility
• Rugged 9″x 3″ flat free wheels

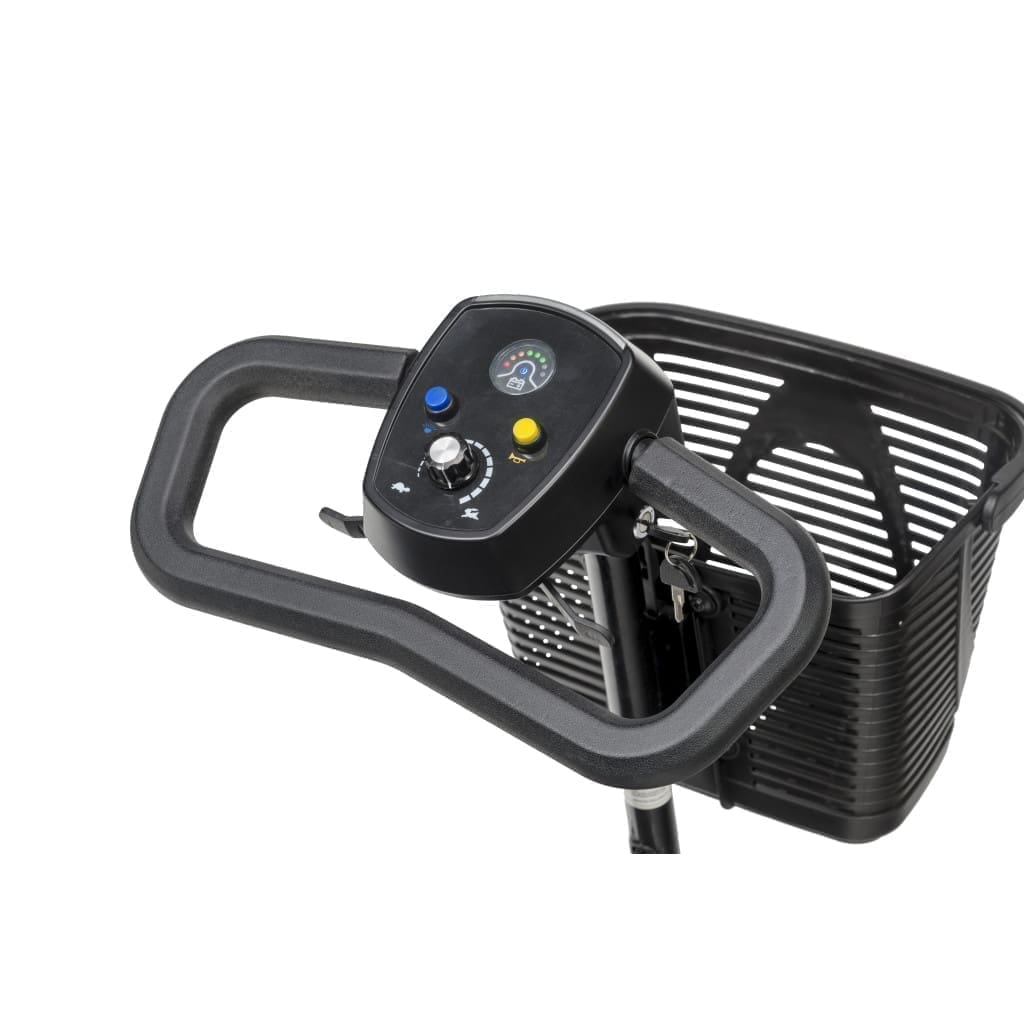

• Padded Delta tiller with easy to use controls
• Adjustable angle tiller
• Convenient freewheel operation capable
• Large, front plastic basket
• Quick disconnect battery pack
• 22 AH batteries provide up to 14 miles travel range
• Offboard battery charger included
• Weight capacity 350 lbs.

Additional Information

LT4-18 LT4-20
Scooter Drive Range: 14.00 miles 14.00 miles
Max Speed: 4.00 mph 4.00 mph
Disassembles/Folds: Yes Yes
Overall Width: 20.1″ 20.1″
Overall Length: 42.3″ 42.3″
Product Weight: 127 lbs. 127 lbs.
Heaviest Piece: 46 lbs. 46 lbs.
Weight Capacity: 350 lbs 350 lbs
Suspension: Yes Yes
Scooter Seat Width: 18″ 20″
Seat Depth: 16 17
Height Adjustable Seat: Yes Yes
High-Back Seat: No No
Multiple Seating Options: Yes Yes
Delta Tiller: Yes Yes
Turning Radius: 70″ 70″
Ground Clearance: 3.90″ 3.90″
Max Incline Rating: 9 ° 9 °
Armrest Options: Flip-Back Flip-Back
Flip-Back Armrests: Yes Yes
Wheel Type: Four Wheeled Four Wheeled
Front Wheel Size: 9″x 3″ 9″x 3″
Rear Wheel Size: 9″x 3″ 9″x 3″
Battery Type: 22AH 22AH
Batteries Included: Yes Yes
Battery Charger Type: Off Board Off Board
Larger Battery Option: No No
Motor Size: 24V *250W x170 24V *250W x170
Drive Type: Rear-Wheel Drive Rear-Wheel Drive
Braking System: Electromagnetic Electromagnetic
Basket Included: Yes Yes
Headlight: Yes Yes
Battery Pack Weight: 31.00 lbs. 31.00 lbs.
Seat Section Weight: 23.50 lbs. 30.50 lbs.
Charging Port Location: Tiller
Battery Box Tiller
Battery Box

Warranty on Batteries 12 Month Warranty on Batteries
Warranty on Frame Limited Lifetime Warranty on Frame
