VIVE TRANSPORT WHEELCHAIR

Product Description

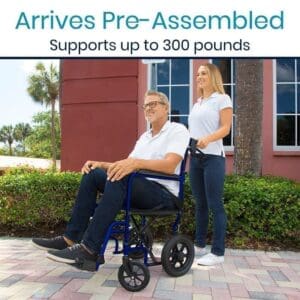

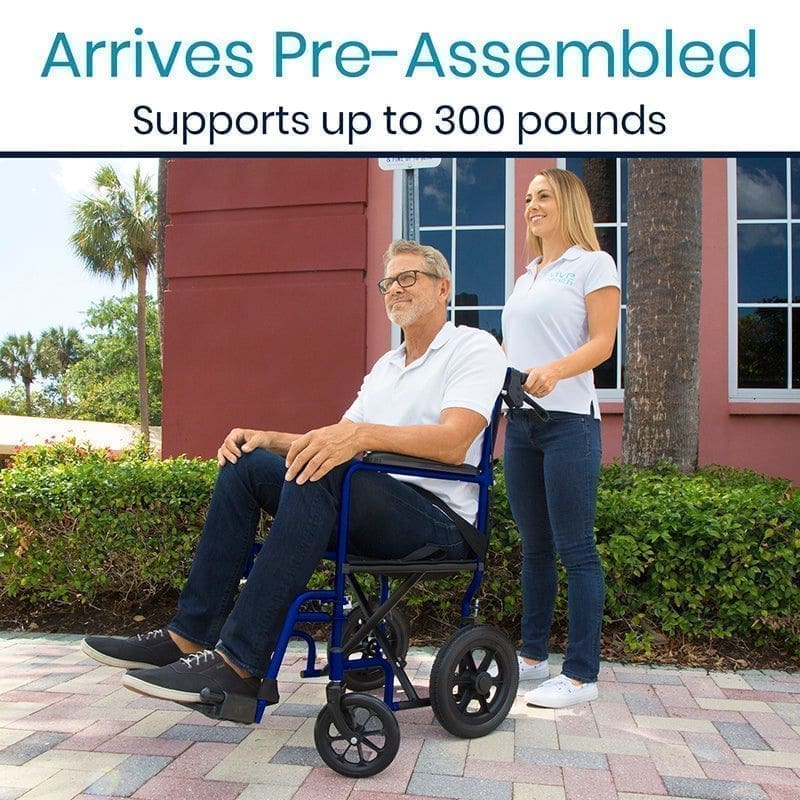

Easily move patients or loved ones around the home or on the go with the Vive foldable transport wheelchair. Safely supporting up to 300 pounds, the durable wheelchair features a wide, 19” seat and a padded backrest and armrest for exceptional comfort. The transport chair features two folding points to fold flat for compact storage and easy transportation in most vehicles.

FEATURES

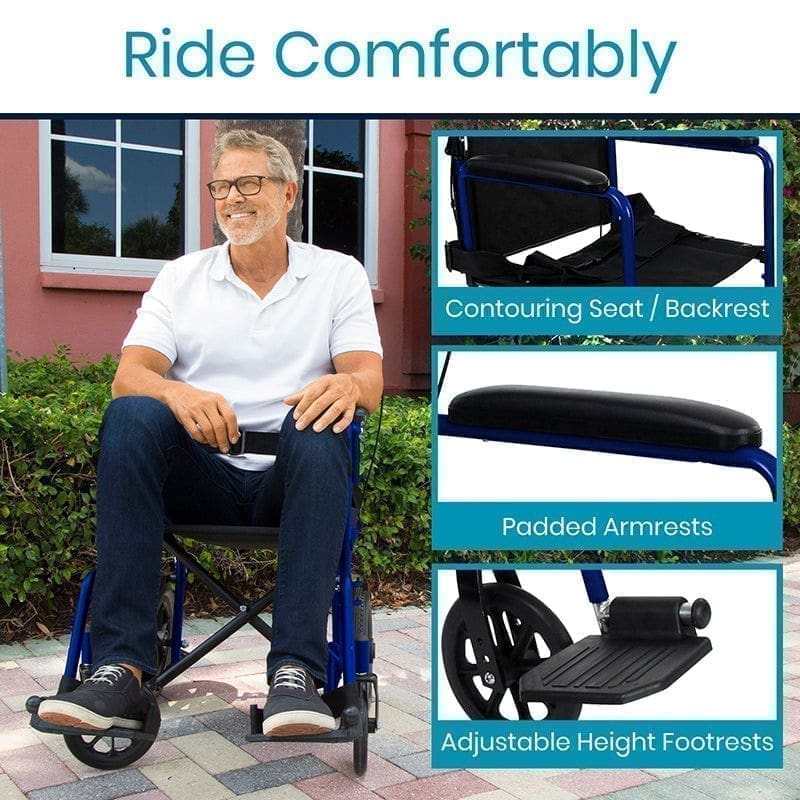

• COMFORTABLE SEATING
  Safely transport an adult patient or loved one in the secure, folding transport wheelchair with a generously wide seat and padded backrest and armrests

• DURABLE AND LIGHTWEIGHT
  Constructed with a strong lightweight steel frame, the lightweight folding wheelchair features adjustable footrests and supports up to 300 pounds

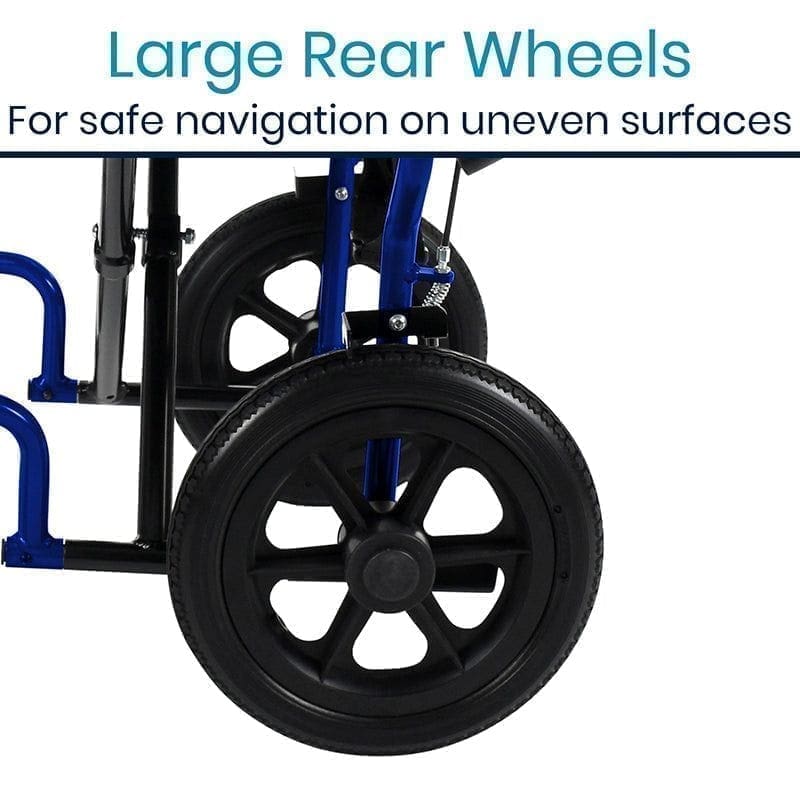

• LARGE REAR WHEELS
  Providing added stability, the large, 12” rear wheels also enable safe and easy maneuvering over uneven surfaces

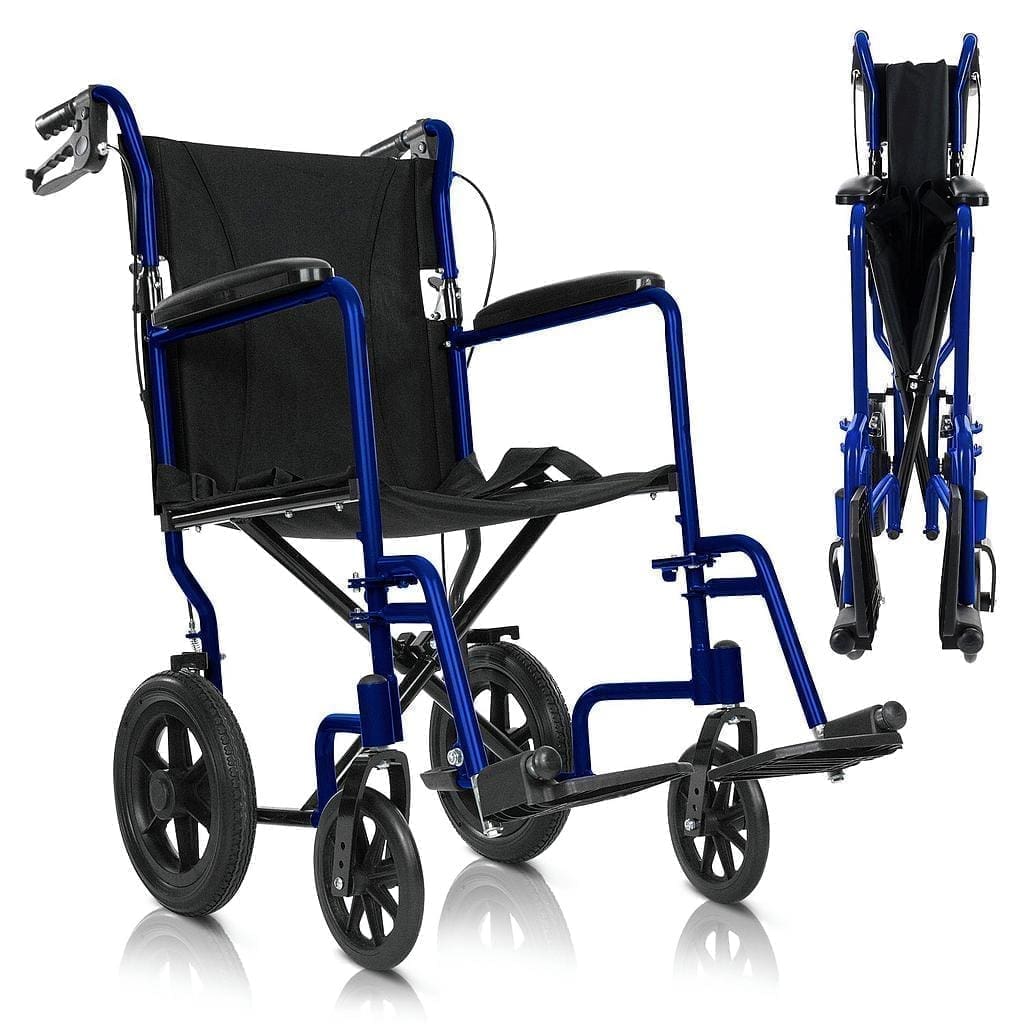

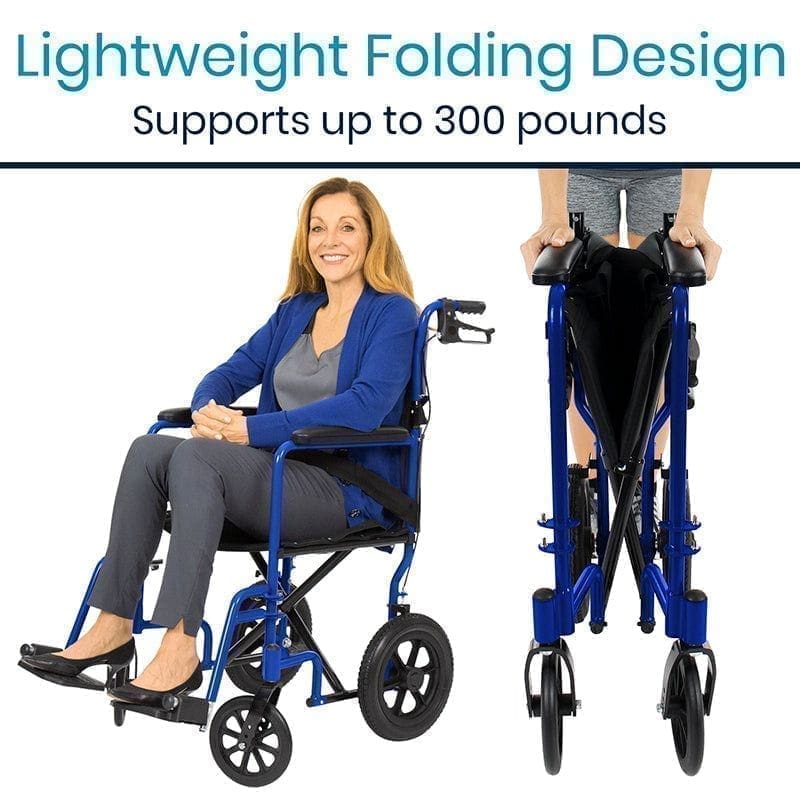

• COMPACT FOLDING DESIGN
  Folding flat for storage, the backrest also folds down to fit in most vehicles for easy portability

Additional Information

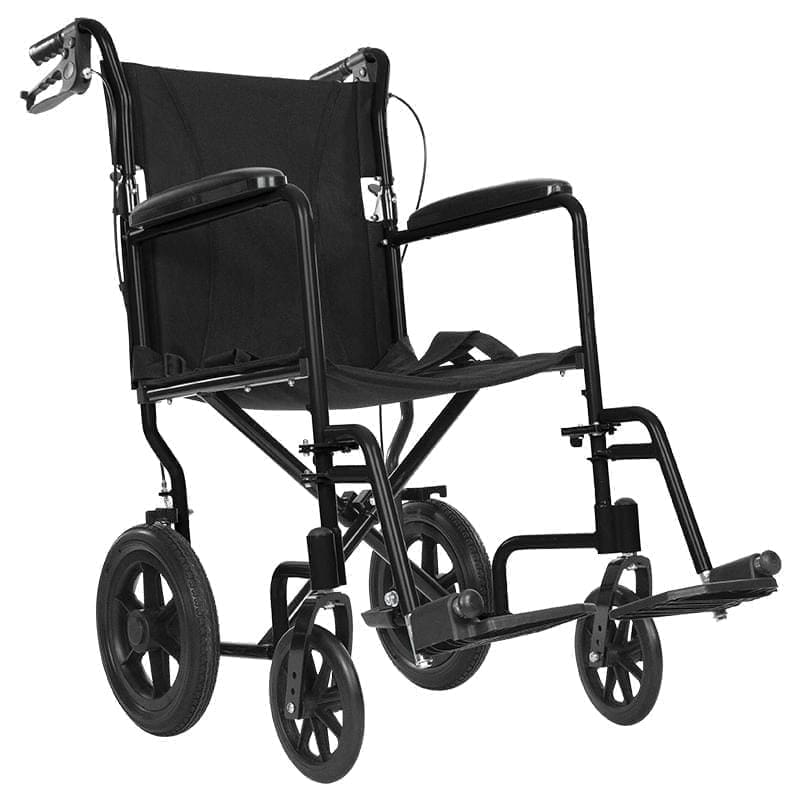

Color	Blue, Black

GENERAL SPECIFICATIONS

What’s Included:

Transport Wheelchair

Uses:

Mobility aid for transporting another individual

Not suitable for self-transportation

Product weight: 29 pounds

Dimensions:

Base when open: 19” by 32”

Handle Height: 40”

Front Wheels: 8”

Back Wheels: 12”

Folded: 8.25” by 30”

Seat Widths: 19”

Seat Depth: 16″

How To Assemble:

Unfold the transport wheelchair by slowly pulling the armrests a part until the seat is fully extended

Raise the hand grips upward until the backrest is fully extended and the bars snap into place with an audible click

Position the footrests on the placement tabs on the transport chair frame. Swing the footrests towards the center to engage the locking lever

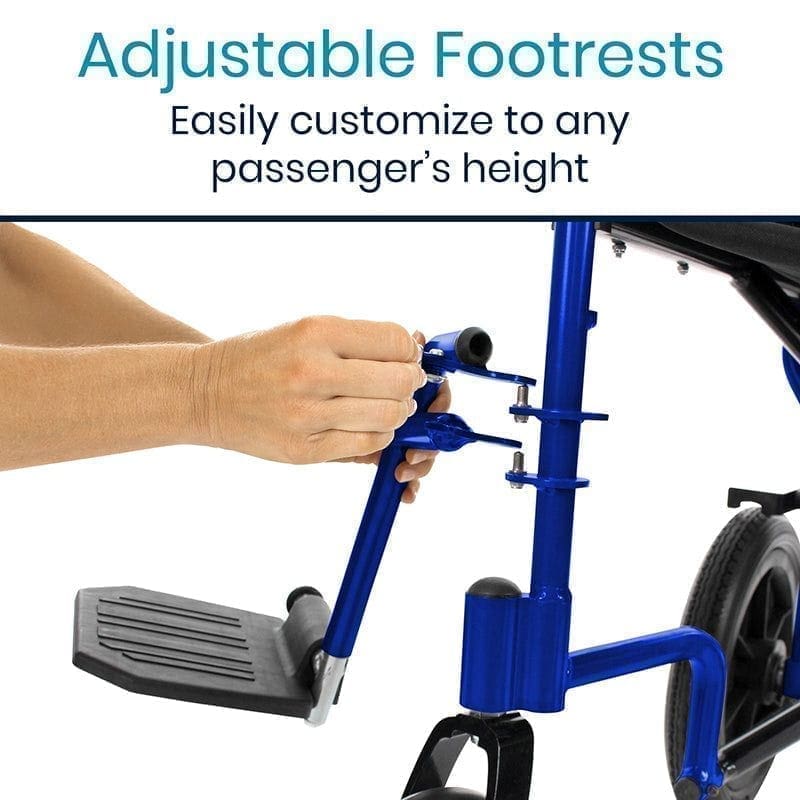

How To Adjust The Footrest Height:

Remove the footrest by releasing the locking lever and swinging the footrest outward

Using a 14mm wrench, loosen the bolt on the underside of the footrest assembly

Raise or lower the footplate to the desired position, ensuring the footplate will be a minimum of 2” from the floor for safe clearance

Tighten the bolt and reinstall the footrest

How To Fold the Transport Wheelchair:

Locate two black tabs on the back of the transport chair frame and push the tabs downward to release the handles

Gently lower the hand grips until they are tucked neatly against the seat of the chair. Note: the hand grips do not extend under the seat

Holding both armrests, pull the armrests together until the seat is completely folded

Care Instructions:

Using a dry, soft cloth, wipe down the frame weekly. For thorough cleaning, use an automotive wax or similar product

If exposed to moisture, dry immediately

Do not use abrasive cleaners

WARRANTY POLICY:

frame – 1 year

handles – 90 days

wheels – none / on arrival 30 days

screws/bolts / nuts – none / on arrival 30 days

cushions/seats – none / on arrival 30 days

paint/panels – none / on arrival 30 days
