EZ ACCESS TRANSITIONS ANGLED ENTRY RAMP

Product Description

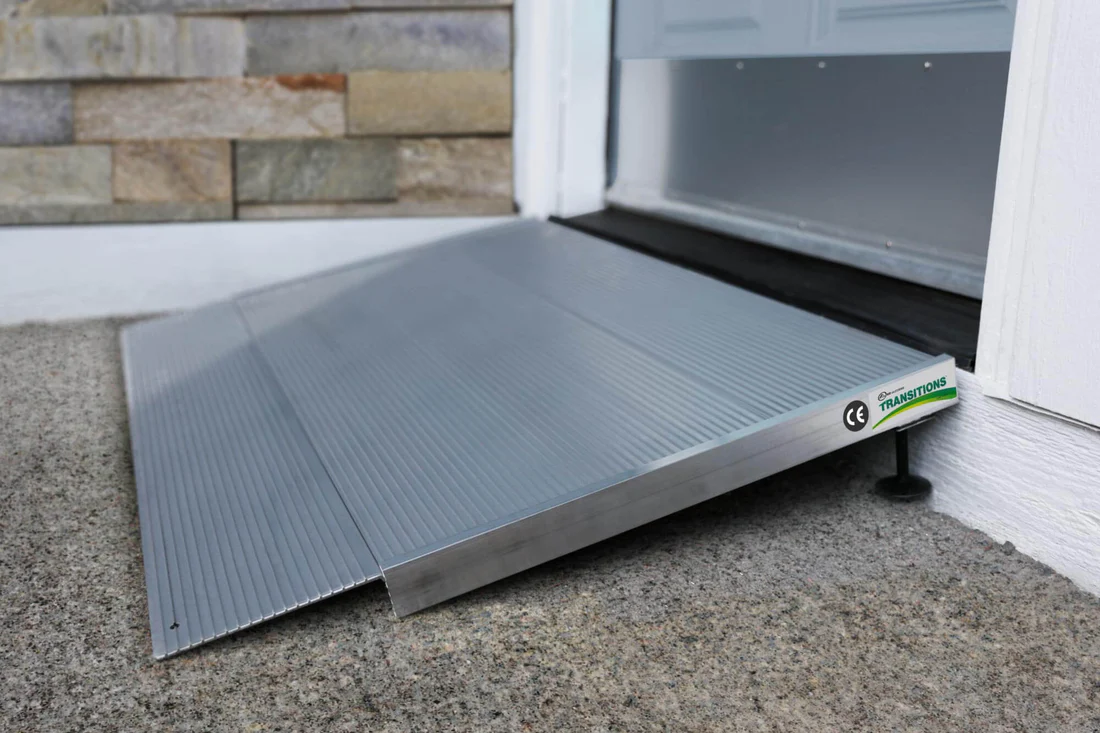

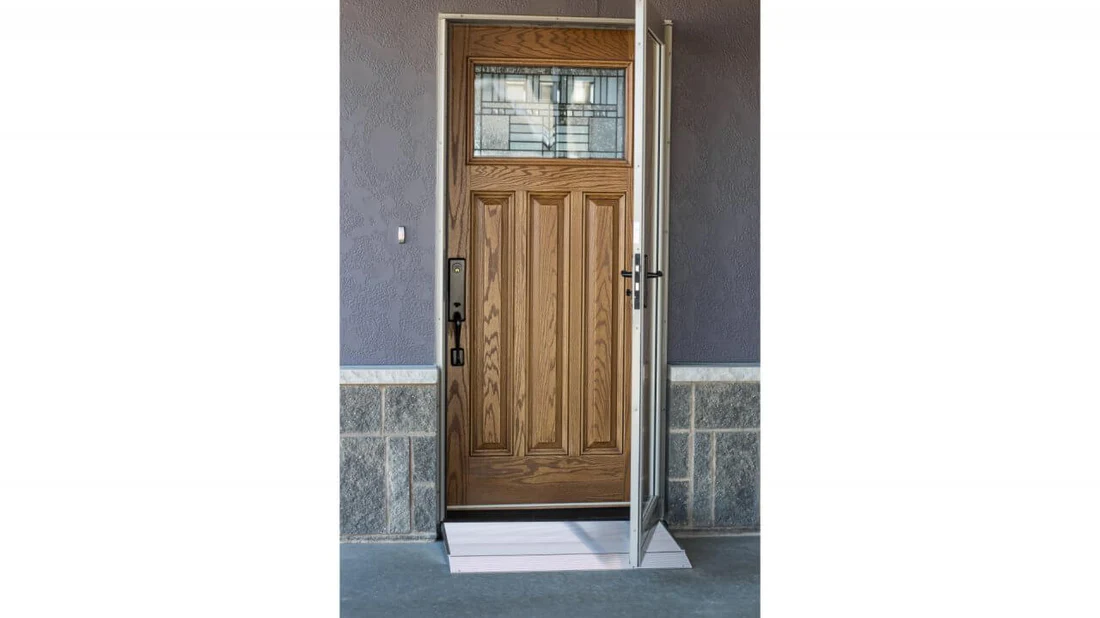

The TRANSITIONS® Angled Entry Ramp is a portable, stand-alone threshold ramp featuring independently adjustable legs with swivel feet, allowing for vertical adjustment ranging from 1.375″ to 5.875″ in height. This self-supporting aluminum threshold ramp is ideal for doorways that swing in and out, uneven surfaces, or single-step rises.

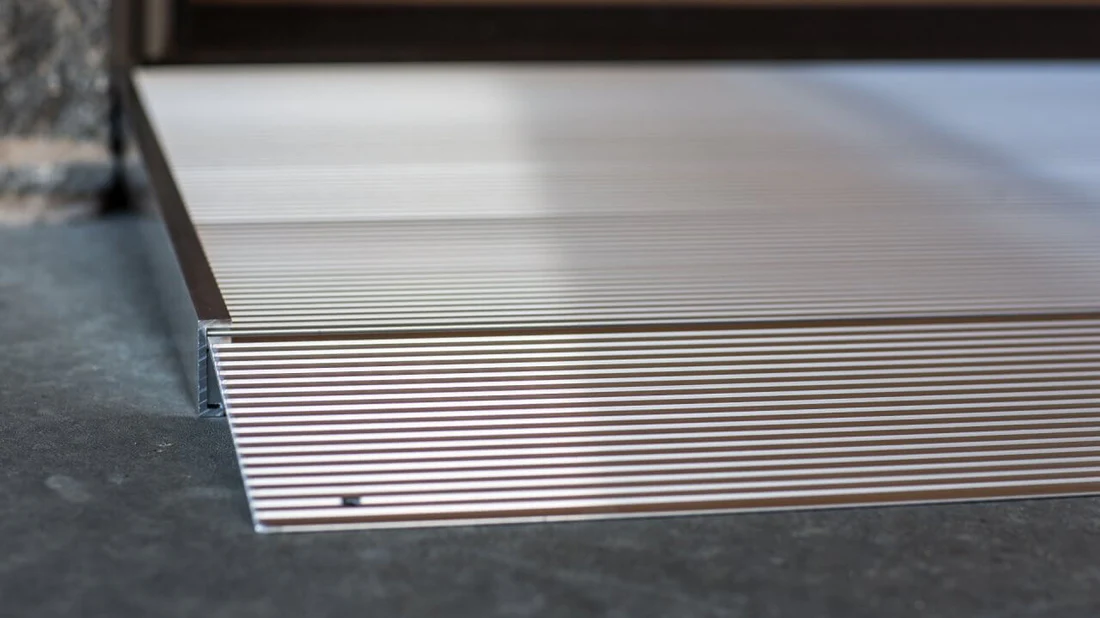

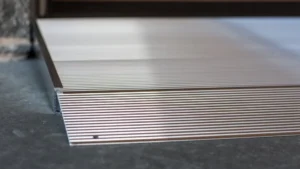

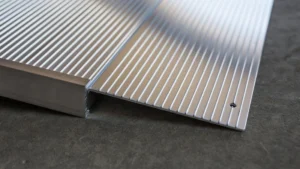

EXTRUDED TREAD SURFACE

• Offers slip resistance to ensure traction in any weather.

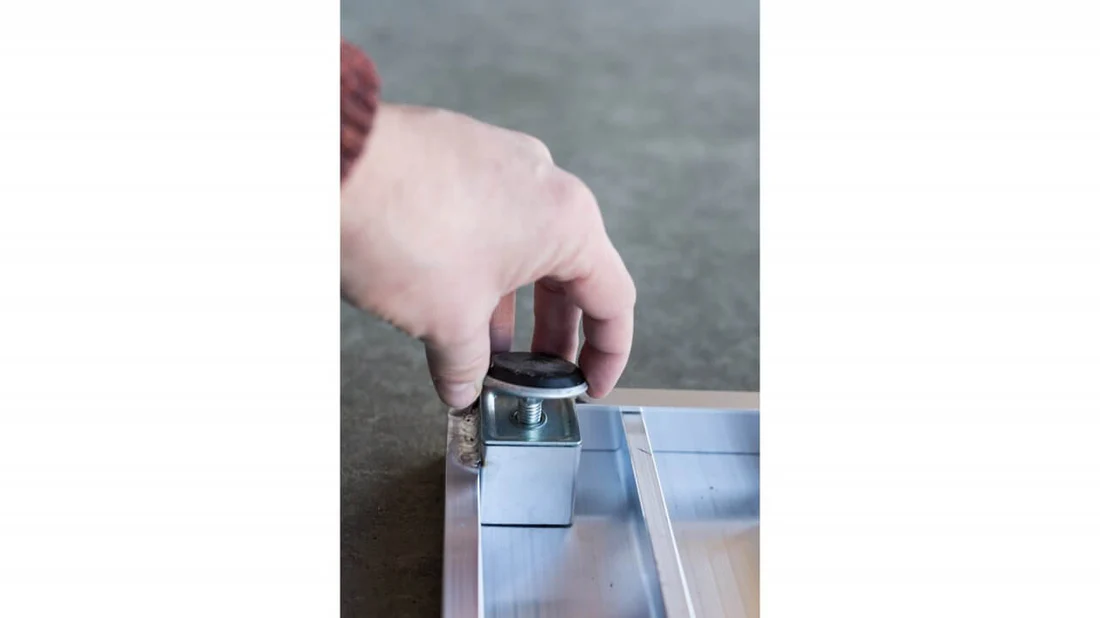

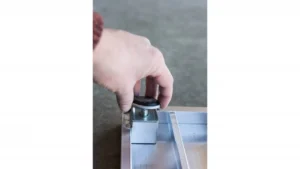

ADJUSTABLE LEGS WITH SWIVEL FEET

• Allows for approximately 2 inches of vertical adjustments. The legs adjust independently, making the Angled Entry Ramp the perfect solution for uneven surfaces.

HIGH-STRENGTH ALUMINUM MATERIALS

• This ramp is made completely out of high-strength aluminum which will not rust or corrode over time.
• 700 lbs. capacity.

Additional Information

With the adjustable feet, what is the minimum and maximum height of threshold it can accommodate?
The TAER 12 height range is 1.92” to 2.958”. The TAER 24 comes with two different sizes of adjustable feet. The shorter set provides a height range of 2.154” to 3.375” and the taller ones provide a height range of 3.178” to 4.361”. The TAER 36 height range is 3.681” to 5.836”.

Does the plate at the bottom of the ramp move?
Yes, the TRANSITIONS Angled Entry Ramp has an adjustable bottom transition plate so that it can provide smooth ramp-to-ground and ground-to-ramp transitions.

Does this ramp require assembly?
Yes, simply attach the two adjustable feet and set them to the necessary height.

Do the feet move?
Yes, the feet swivel, allowing this ramp to adapt to uneven surfaces.

How do you keep the ramp from moving?
There are pre-drilled holes for anchoring in the bottom transition plate and hardware is provided for drilling into a wood surface.
